10 KV Insulation resistance tester MIT1025/2

Adiradh offering 10KV Insulation resistance tester  MIT1025/2  is the simplest of Megger’s new advanced range of small, light 10KV insulation resistance testers for the testing and maintenance of high voltage electrical equipment. Essential model MIT1025/2  is perfect for performing ‘go/no go’ testing; no need to record test results; working in tough locations using under 10KV test voltage. Essential MIT1025/2 supporting insulation resistance, dielectric absorption ratio (DAR), and polarization index (PI) testing. Megger’s PI Predictor™ reduces PI test duration by up to 50%, boosting productivity when testing multiple phases. Part Number of MIT1025/2-UK ADVANCED 10kV IRT 2024 PIP

10KV Insulation tester

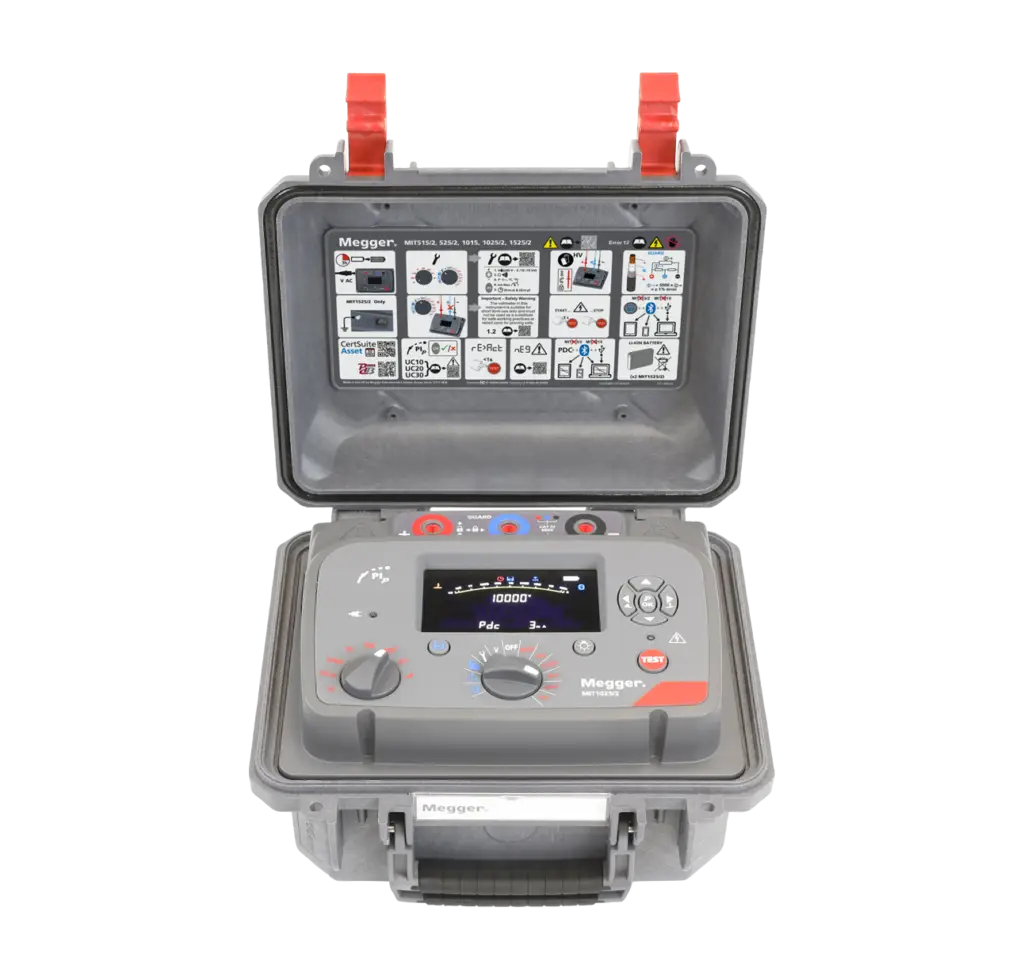

10KV Insulation tester MIT1025/2



Features of 10KV Insulation resistance tester:

  • RE>Act mode enhanced accuracy and safety
  • PI predictor function (PIp)
  • Measures up to 20 TΩ
  • Up to 3 mA noise rejection
  • Safety rated up to CAT IV 1000 V to 3000 m
  • Unique dual-case design – additional user protection
  • Operates from battery or AC mains supply
  • Rapid charge Li-ion battery

Re>Act test mode in 10KV Insulation  tester  MIT1025/2 allows the user to make accurate measurements by monitoring reabsorption current. This groundbreaking test mode can ensure reabsorption current does not result in incorrectly passing or failing insulation, helping to maintain safety. In addition, the test mode can be used to ensure dangerous return voltages to not occur. The high-performance guard terminal ensures measurement accuracy even in high-leakage conditions. Simple to use, CAT IV 600 V rated, and built for demanding industrial, OEM, and utility applications. Another common feature of 10KV Insulation tester MIT1025/2   is the intuitive color custom display, with its ability to work in extreme environments and unbeatable viewing angle.

PI Predictor  function  (PIP)

The Polarization Index test can be time consuming, with a 10 minute test (30 mins on 3 phase) and with multiple items to test, any time saved is a bonus. PIp does just that. The PI predictor function uses the first part of the IR curve to predict the rest at 5 minutes into the test. The PIp can start as early as 3 minutes into the test and will stop when it is confident in the prediction.

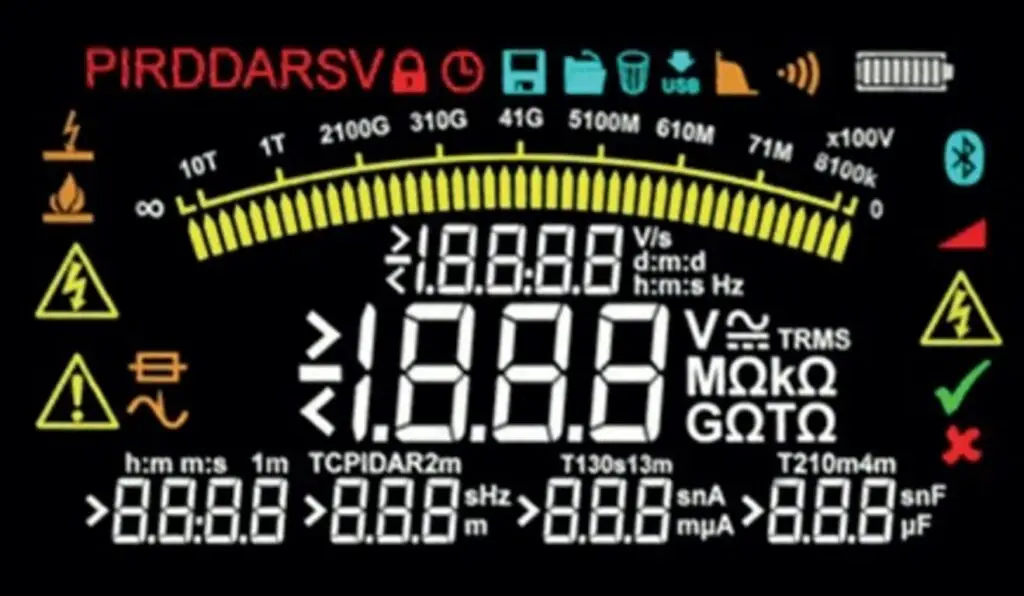

Megger_Tester_Display_s1-568/2

Intuitive color custom display of of 10KV Insulation tester MIT1025/2

Applications for the Essential range of Insulation testers:

  • Prior to product/asset shipment to provide benchmark measurements
  • On site inspection, comparing to benchmark results, to ensure everything is good before installation
  • Checking after installation of a new asset
  • During maintenance to drive predictive maintenance
  • Following repair prior to powering up
  •  Production line
  • On construction sites
  • Industrial locations
  • Power distribution
  • Cables of all types
  • Power transformers
  • Measurement transformers
  • Circuit breakers
  • Motors
  • Generators
  • Bushings

Brochure for 10KV Insulation resistance tester-MIT1025/2

Download

User manual 5 KV ,10 KV and 15KV Insulation Resistance Testers

Download

Scope of Supply of 10KV Insulation resistance tester:

  • MIT1025/2 Basic Unit
  • Power lead
  • Calibration certificate
  • Lead sets
  • Lead set 3kV 3 x 3 m, with medium clips 1008-022
