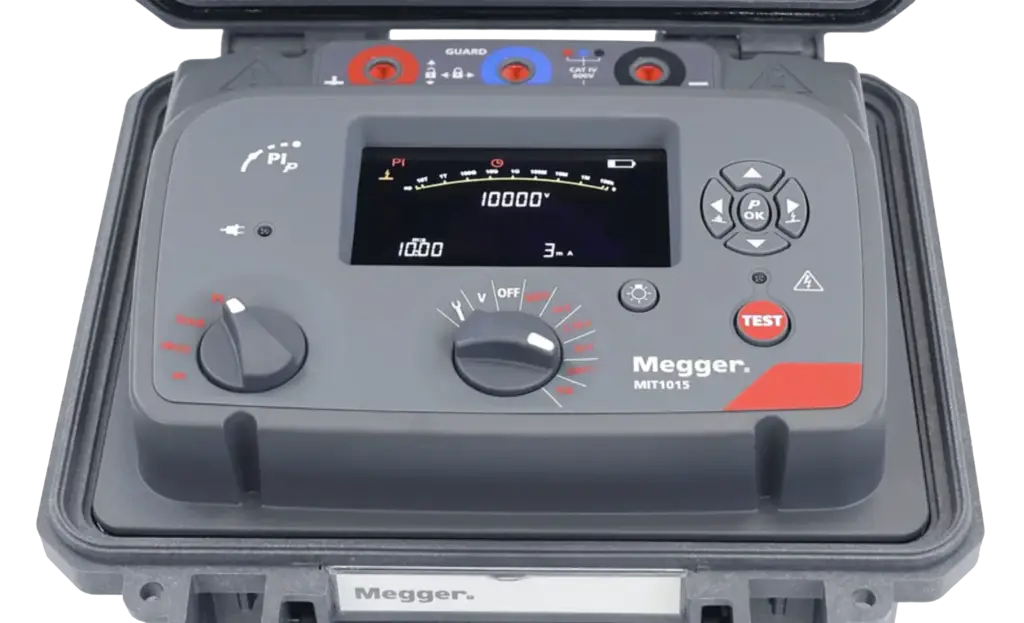

10KV Insulation resistance tester MIT1015
Adiradh Energy offering 10KV Insulation Resistance tester MIT1015 which is a high-precision electrical tester designed for accurate measurement of insulation resistance in transformers, cables, motors, and switchgear. Compact, portable, and user-friendly, the MIT1015 provides reliable readings in both industrial and utility applications. It ensures safety, durability, and efficiency, making it an essential tool for electrical maintenance teams. If perform routine maintenance or go/no-go testing and don’t need internal data storage, an
Essential MIT1015 offers dependable performance and great value.MIT1915 have no onboard storage and a fixed 3 mA burn/charge current—perfect for environments where advanced features like remote control aren’t required. The high-performance guard terminal ensures measurement accuracy even in high-leakage conditions. MIT1015 is simple to use, CAT IV 600 V rated, and built for demanding industrial, OEM, and utility applications, the Essential range delivers fast, dependable results without complexity.
Essential tester MIT1015 include the most commonly used test modes:
- Insulation Resistance (IR)
- Dielectric Absorption Ratio (DAR)
- Polarisation Index (PI)
Essential level 10KV Insulation resistance tester MIT1015
Key Features of MIT1015-10KVInsulation Resistance Tester
- Measures insulation resistance up to 20 TΩ
- RE>Act test mode for enhanced accuracy and monitoring reabsorption current
- PI Predictor™ function (PIp) reduces Polarization Index test duration by up to 50%
- Noise rejection up to 3 mA for stable readings
- Safety rated CAT IV 1000 V to 3000 m
- Dual-case design for additional user protection
- Operates from battery or AC mains supply
- Rapid charge Li-ion battery for uninterrupted use
Resources
PI Predictor (PIP) Function feature
The Polarization Index (PI) test can take up to 10 minutes (30 minutes on three-phase equipment). The PIP function predicts the full PI result within minutes, using the initial part of the IR curve, saving significant time while maintaining accurate results. Testing can start as early as 3 minutes, with automatic stop when results are confidently predicted.
Accurate testing with Re<Act-Newly added feature
10KV Insulation tester MIT1015 allows the user to make accurate measurements by monitoring reabsorption current. This groundbreaking test mode can ensure reabsorption current does not result in incorrectly passing or failing insulation, helping to maintain safety. In addition, the test mode can be used to ensure dangerous return voltages to not occur. The high-performance guard terminal ensures measurement accuracy even in high-leakage conditions. Simple to use, CAT IV 600 V rated, and built for demanding industrial, OEM, and utility applications. Another common feature of 10KV Insulation tester MIT1015 is the intuitive color custom display, with its ability to work in extreme environments and unbeatable viewing angle.
Intuitive color display with a wide viewing angle in MIT1015 for extreme environments

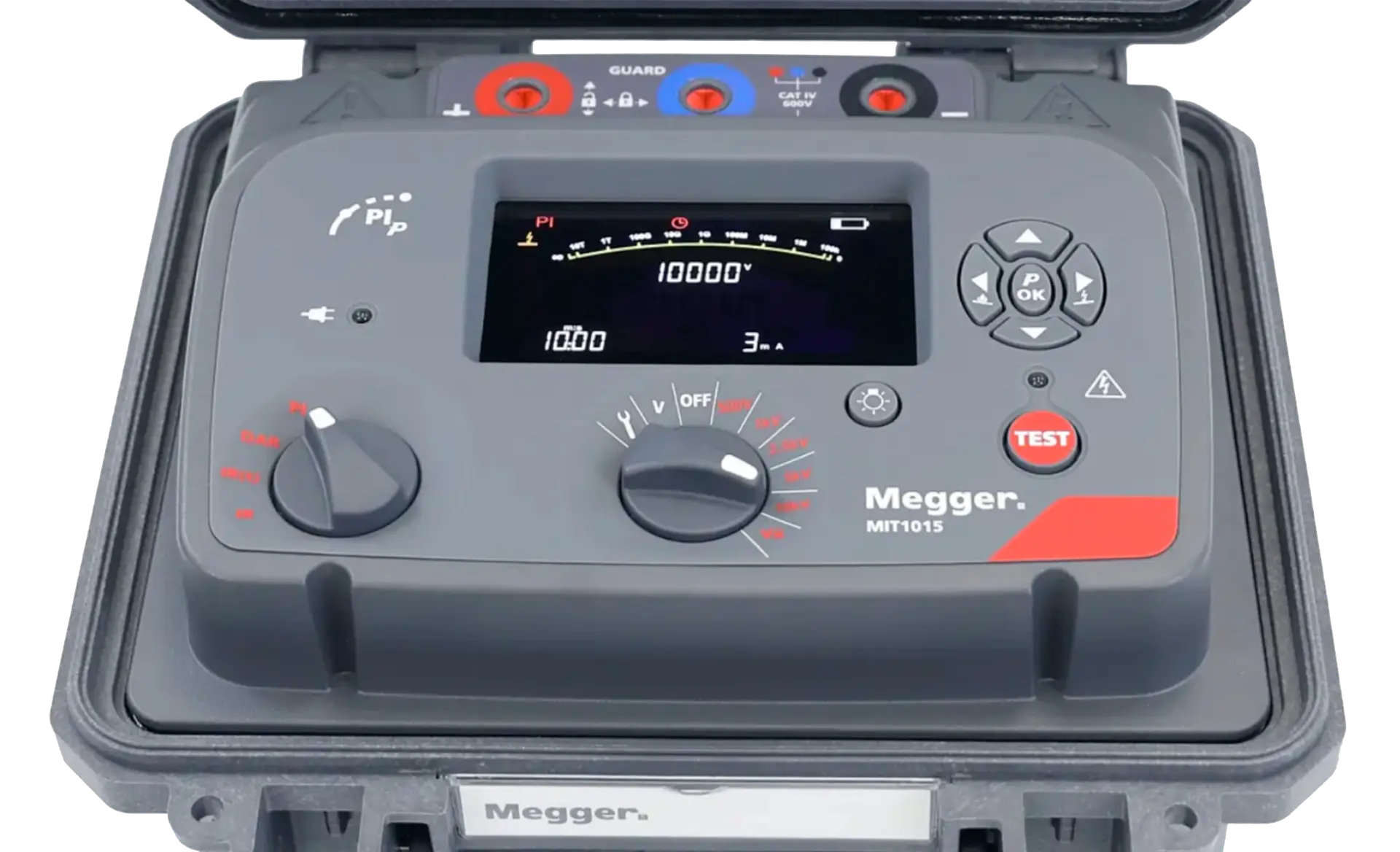

Intuitive color custom display of MIT1015
Applications of 10KV IR Tester MIT1015
- Transformer testing before and after installation
- Cable insulation testing for maintenance and safety audits
- Switchgear and circuit breaker inspection
- Motors and generators maintenance
- Industrial and power distribution sites
- Construction sites and production lines
- Preventive and predictive maintenance to avoid failures
Scope of Supply of 10KV Insulation tester
- MIT1015 Basic Unit
- Power lead
- Calibration certificate
- Lead sets, including 3kV, 3 x 3 m with medium clips (1008-022)
- Lead set HV 3 x 3 m, with medium and large clips (MIT1015 only) 1002-534
Why Choose MIT1015
- Reliable and high-precision measurements
- Safe operation with RE>Act mode and dual-case design
- Suitable for field and industrial applications
- User-friendly interface with color display
- Portable and durable, designed for tough environments
Availability in India
Adiradh Energy offers the 10KV Insulation Resistance Tester
MIT1015 across India in major cities including: Hyderabad, Visakhapatnam, Vijayawada, Chennai, Puducherry, Trichy, Coimbatore, Hosur, Bangalore, Hubli, Mysore, Cochin, Kolkata, Pune, Goa, Mumbai, Thane, Kanpur, Jaipur, Nagpur, Delhi, Noida, Gurugram, Bhopal, Raigarh, Vadodara, Ahmedabad, Chandigarh, Tata Nagar, Raipur, Rudrapur, Durgapur, Bilaspur, Kharagpur, Bhilai, Angul, Haldia, Jabalpur, Indore, Jamshedpur, Rajahmundry, Bokaro Steel City, Salem, Kochi, Rourkela, Jamnagar, Bharuch, Sri City, Nashik, Haridwar, Mathura, Aurangabad, Bhubaneswar, Faridabad and other cities.
