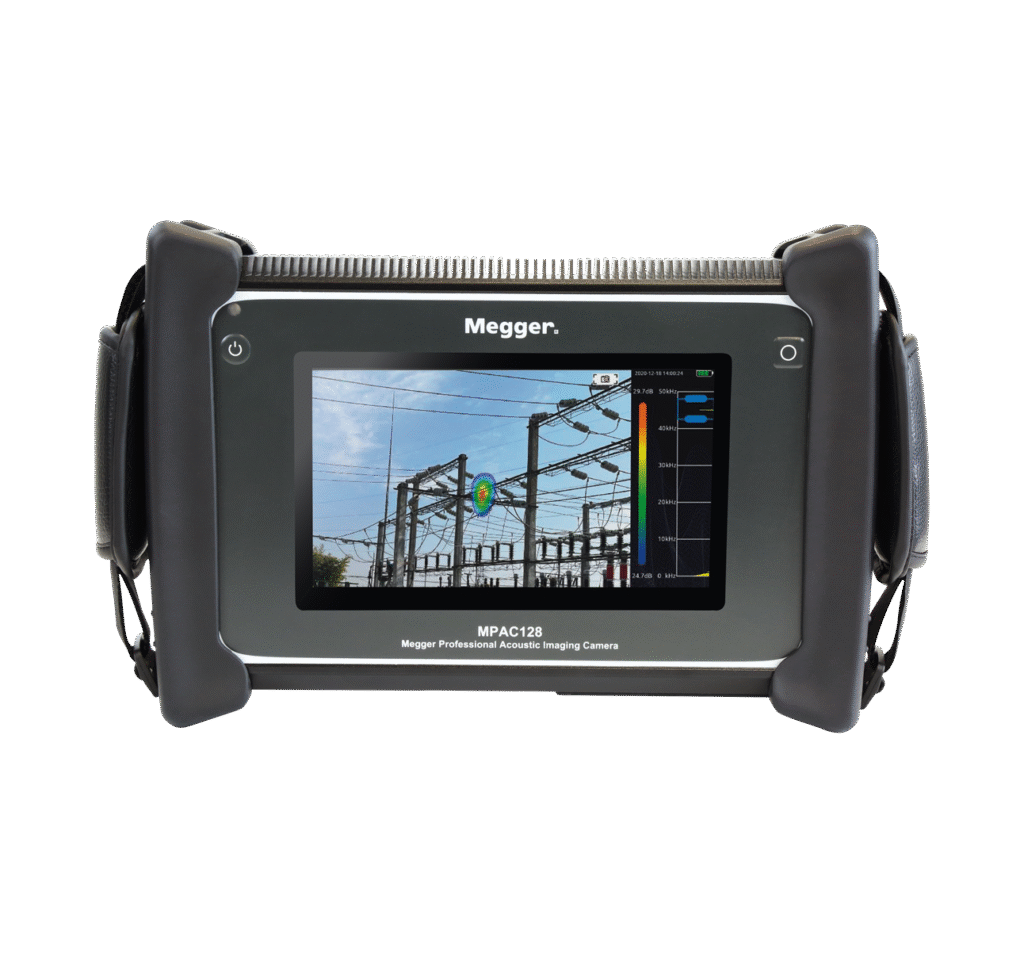

Acoustic Imager Camera MPAC128

Adiradh offers Megger MPAC128 Acoustic Imager Camera is an advanced and reliable diagnostic tool designed to detect and visualize gas leaks and partial discharge (PD) with outstanding precision. By using cutting-edge acoustic imaging technology, it converts sound into a visual map, allowing users to pinpoint invisible issues quickly and safely. Consequently, maintenance professionals can act faster, reduce downtime, and prevent costly failures.

Powerful Detection and Precision

Equipped with a 128-microphone array, the MPAC128 captures a wide range of acoustic frequencies to identify even the faintest leaks or discharge activity. Moreover, it visualizes these sounds as a clear, real-time “sound map” overlaid on a high-quality image. This intelligent approach enables engineers to locate problems instantly and perform targeted repairs, rather than relying on time-consuming manual methods.

Brochure for Acoustic Imager Camera MPAC128

Download

User manual for Acoustic Imager Camera MPAC128

Download

Long-Range and Non-Contact Operation

The Megger MPAC128 offers exceptional long-range detection capability, accurately sensing sound sources from distances of up to 120 meters. As a result, users can safely inspect high-voltage areas, pressurized systems, and confined spaces without approaching hazardous equipment. Additionally, its non-contact operation not only increases user safety but also minimizes system disruption during inspections.

High-Quality Imaging and Intuitive Display

With a high-resolution optical camera and a bright 7-inch touchscreen, the MPAC128 provides a crystal-clear view of both the visual and acoustic data. Furthermore, its intuitive user interface ensures smooth navigation and effortless control. Whether capturing images, recording videos, or reviewing live sound maps, users can easily interpret data in real time. Therefore, decision-making becomes faster and more reliable in the field.

Smart Analysis and Real-Time Diagnostics

The MPAC128 Acoustic Imager goes beyond detection — it delivers intelligent analysis and actionable insight. It can estimate leak rates, classify partial discharges, and highlight sound intensity variations. Moreover, the built-in focus function eliminates background noise in loud industrial settings, ensuring that only relevant signals are captured. In addition, real-time diagnostics empower maintenance teams to act proactively rather than reactively, ultimately improving operational efficiency.

Robust and Reliable for Industrial Use

Built for demanding environments, the Megger MPAC128 features a tough, IP54-rated design that resists dust, moisture, and varying temperatures. Therefore, it performs dependably in both indoor and outdoor applications. Whether it’s used in manufacturing, utilities, or energy facilities, this acoustic imager consistently delivers reliable results under challenging conditions.

Long Battery Life and Efficient Data Management

To support long field sessions, the MPAC128 includes a high-capacity rechargeable battery that provides up to four hours of continuous operation. Additionally, its 8 GB internal storage allows users to save acoustic images, videos, and sound recordings directly on the device. For extended projects, users can expand storage with microSD or USB options. As a result, data handling becomes faster, easier, and more organized.

Intelligent Self-Diagnostics

To ensure consistent accuracy, the imager performs automatic self-checks on its microphone array and internal systems during operation. Consequently, users can rely on precise measurements and dependable results in every inspection. Moreover, this self-monitoring function minimizes maintenance needs and extends the instrument’s lifespan.

Software Integration and Reporting

Megger’s free software makes post-inspection analysis seamless. It allows users to review spectrograms, evaluate frequency patterns, and generate detailed maintenance reports. Furthermore, by combining visual and acoustic data, the software enhances the ability to track changes over time and detect developing issues early. As a result, organizations can plan maintenance more effectively and improve asset reliability.

Applications

Gas leak detection in compressed air, vacuum, and gas systems
Partial discharge testing in electrical and switchgear equipment
Inspection of mechanical components, bearings, and valves
HVAC system audits and pressure-loss assessments
Predictive maintenance and reliability engineering programs

Why Choose the Megger MPAC128?

Detects gas leaks and partial discharge from a safe distance
Improves workplace safety and reduces operational downtime
Delivers high-resolution acoustic and optical imaging
Simplifies complex inspections with an intuitive interface
Provides reliable, durable performance in industrial environments
Supports proactive, data-driven maintenance strategies
