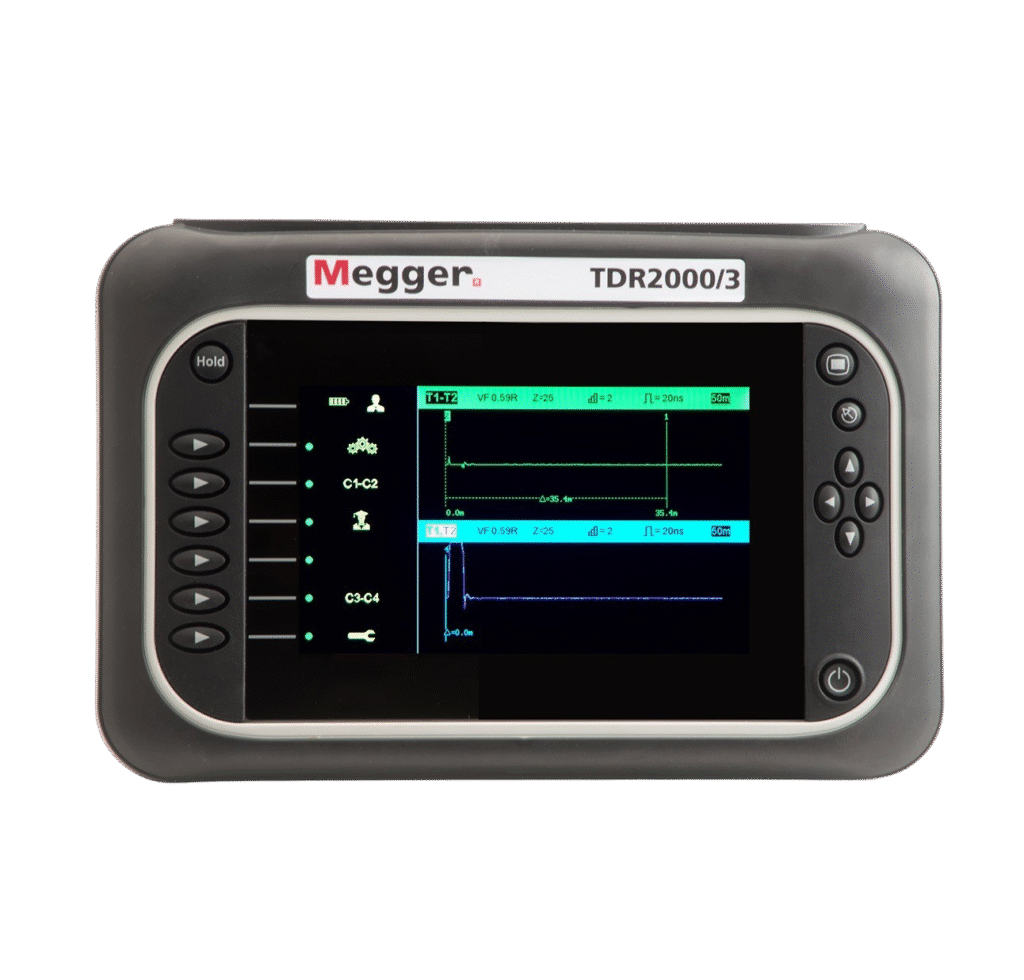

Advanced dual-channel time domain reflectometer – TDR2000/3

Adiradh offers the Advanced dual-channel time domain reflectometer – TDR2000/3 for accurate and reliable cable fault location. Moreover, this advanced instrument supports precise testing of power, control, and communication cables. Therefore, technicians can identify faults with confidence. In addition, the dual-channel design allows parallel measurement and comparison. Also, the clear display supports fast interpretation of results. Furthermore, the portable design supports efficient field use. However, the instrument focuses on measurement accuracy rather than complex operation. Consequently, testing time is reduced. As a result, maintenance planning becomes more effective. Thus, downtime is minimized. Moreover, the device supports a wide range of cable types and lengths. Therefore, it suits utility, industrial, and infrastructure environments. In addition, intuitive controls reduce training effort. Also, stored traces support later analysis. Finally, the TDR2000/3 delivers consistent results, thus supporting dependable daily cable diagnostics and fault location tasks.

Overview

The Advanced dual-channel time domain reflectometer – TDR2000/3 is designed for detailed cable fault analysis using time domain reflectometry. Moreover, it injects controlled electrical pulses into cables and analyzes reflected signals. Therefore, users can accurately determine distance to faults. In addition, the dual-channel architecture supports simultaneous testing and trace comparison. Also, adjustable velocity of propagation improves accuracy across different cable constructions. Furthermore, the high-resolution display presents waveforms clearly. However, the menu-driven interface remains simple to use. Consequently, setup time is minimized. As a result, field efficiency improves. Thus, the instrument supports both routine testing and advanced troubleshooting. Moreover, internal memory enables waveform storage. Therefore, historical comparison becomes possible. In addition, battery-powered operation supports portable use. Also, the rugged enclosure supports outdoor conditions. Finally, the TDR2000/3 supports reliable fault location in low-voltage and medium-voltage cable networks.

Datasheet for Advanced dual-channel time domain reflectometer – TDR2000/3

User Guide for Advanced dual-channel time domain reflectometer – TDR2000/3

About Product

The Advanced dual-channel time domain reflectometer – TDR2000/3 operates using high-performance TDR measurement technology. Moreover, it generates fast rise-time pulses that propagate along the cable under test. Therefore, impedance discontinuities such as open circuits, short circuits, joints, and splices produce reflections. In addition, the instrument measures signal time delay and applies velocity of propagation to calculate fault distance. Also, selectable output impedance supports standard cable impedances. Furthermore, digital signal processing enhances waveform resolution and noise rejection. However, testing remains non-destructive on de-energized cables. Consequently, insulation integrity is preserved. As a result, the device supports preventive and corrective maintenance strategies. Thus, near-end and far-end faults are located precisely. Moreover, dual cursors and zoom functions support detailed waveform analysis. Therefore, interpretation accuracy improves. In addition, internal memory stores multiple traces. Also, USB connectivity supports data transfer and reporting.

Technology & Benefits

The Advanced dual-channel time domain reflectometer – TDR2000/3 combines precise pulse generation with advanced digital processing. Moreover, short pulse widths improve spatial resolution. Therefore, small impedance variations are clearly detected. In addition, dual-channel operation enables direct comparison between test results. Also, adjustable gain and filtering reduce noise influence. Furthermore, automatic distance calculation accelerates analysis. However, manual cursor control allows expert evaluation. Consequently, flexibility is maintained. As a result, diagnostic accuracy improves significantly. Thus, cable fault location becomes more reliable. Moreover, trace storage enables trend and reference analysis. Therefore, maintenance decisions rely on measured data. In addition, battery-powered operation supports mobile testing. Also, the rugged design ensures dependable performance in field conditions. Finally, the integrated technology improves safety, efficiency, and consistency in advanced cable diagnostics.

Key Features

• Advanced dual-channel time domain reflectometer

• Simultaneous dual-channel measurement

• Adjustable velocity of propagation

• High-resolution waveform display

• Cursor and zoom analysis functions

• Internal memory for trace storage

• Battery-powered portable operation

• Rugged enclosure with USB interface

Applications

• Power cable fault location

• Control cable diagnostics

• Communication cable testing

• Utility distribution networks

• Industrial cable maintenance

• Commissioning and troubleshooting

Advantages

• Accurate distance-to-fault measurement

• Dual-channel comparison capability

• Reduced fault location time

• Non-destructive testing method

• Portable and field-ready design

• Reliable results across cable types
