Cable fault and test system Vans

Adiradh energy offers cable test van solutions to the challenges of fault location in India, no matter the environment. Megger sebakmt brand Cable fault locating van systems have been developed in collaboration with end users to ensure that they live up to the standards of daily fieldwork,most appropriate tests may be carried out for the cable in question, regardless of whether it is low, medium or high voltage. Megger have  van mounted Cable fault locating systems  like Compact city , Centrix 2.0 and R30

Cable Fault Locating Test Van Compact City SFX40

Adiradh Energy Energy offers compact city SFX 40 is a mobile, multi-functional system for testing, prelocation, pinpointing and converting cable faults in low and medium voltage networks.The system is directly controlled via CAN Bus by the connected Teleflex SX or via the integrated PLC operating panel. All functions of the system can be easily performed using the rotary encoder. Easy to operate using the selector knob on the Teleflex SX or the touchscreen ,High surge energy up to 2,000 joules,Voltage source with 40 kV, All HV location methods integrated: ARM, ICE, DECAY, ICE Plus, Sheath fault location up to 10 kV, Maximum safety thanks to external safety equipment and integrated isolating transformer ,Reflectometer can be used separately.Megger India’s “Make in India” initiative brings you the latest Cable Test Van “Compact City”, which is loaded with the SFX 40 is a multi-functional system for testing up to 40 kV, prelocation, pinpointing and converting cable faults in low and medium voltage networks up to 32 kV. As a mount solution on a customized Mahindra Bolero Camper, the system has different optional cable drum modules. In connection with the NSF E Mains control system, further technologies as a VLF test and diagnostic module can be integrated to build a complete system

Compact city Cable Fault locating van

Compact city Cable Fault locating van -SFX40

Benefits of SPG40

  • DC Testing up to 40 kV ARM, ICE and Decay Method integrated
  • Operation by VGA Display and single button rotary encoder
  • High surge energy fort he acoustic pinpointing 1000 or 2000 J
  • Surge voltage levels for MV cablel 0 … 12,5/25 kV or 0 … 16/32 kV
  • Surge voltage levels for lower voltage 0 … 3/6 kV or 0 … 4/8 kV
  • Integrated safety system

Due to the size of the component parts, an entire single-phased test system for cables rated up to 33 kV fits into the smallest vehicles. Parking bay and ceiling height problems in underground parking and train stations, and working in narrow alleys, these are a thing of the past with this test van.Tailored to fit to small vehicles,Easy operation in restricted spaces, Centrally controlled, fully automatic system with intuitive user interface, Fully integrated PD coupler, Cost-effective modular system architecture, Highest safety standard, The system structure of the City Series offers new and unique capabilities of cable fault location, VLF testing and partial discharge diagnostics available

Adiradh energy offers Cable Fault Locating Test Van Compact City SFX 40 in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Cable test and fault Locating system Compact City SFX 40 M Download

Cable Test Van System Centrix 2.0

Adiradh Energy Energy offering Megger make Centrix 2.0 is the world’s most modern and powerful cable test van system for fast, easy and non-destructive fault location up to 33 kV. Equipped with the latest generation of cable diagnostics in conjunction with powerful VLF testing technology, Centrix 2.0 makes it possible to perform standard-compliant cable testing with accompanying partial discharge diagnosis .Intuitive easyGO® operation using a touch display,Highest standard of safety with safe Discharge technology,Remote control of important system function

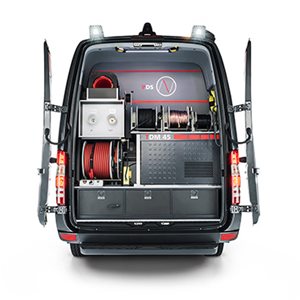

Centrix 2.0

WORLD’S MOST MODERN AND POWERFUL CABLE TEST VAN SYSTEM-CENTRIX 2.0

Overview of Cenrix 2.0

  • Intuitive easyGO® operation using a touch display
  • System powered by Li-Ion batteries
  • Highest standard of safety with SafeDischarge technology
  • Remote control of important system functions
  • Cable diagnosis with 50 Hz slope technology
  • Breakdown phase detection for three-phase cable testing

Adiradh energy offers Cable test  van systems Centrix  in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Cable testing diagnostics and fault location Van CENTRIX Download

Most Powerful Cable Fault Location  Van System R 30

Adiradh Energy Energy offers Underground Cable fault locating test Van system Megger make R 30 suitable for from 132KV,220KV and 400 KV rated EHV  Cables .With its standard 110 kV/290 mA DC testing, up to 50 kV ARM prelocation and 3 kV to 50 kV surging with up to 2500 J, the R 30 System covers all requirements in the range of low voltage up to high voltage without any difficulty.Fault Prelocation up to 400 kV,Testing up to 400 kV.VLF with 70 kV,ARM up to 50 kV.Optional the system offers a 0.1 Hz cosine rectangular test system up to 70 kVrms and testable cable capacity of 5 µF @ 0,1 Hz, Burning with 15 kV / 25 A and surging with 80 kV and 3200 J. For higher voltage the R 30 system can be optionally equipped with up to 400 kV DC and 400 kV Decay.All operational modes are controlled by a central system control panel which selects the operation via motor driven HV switches.

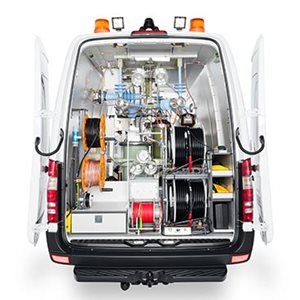

Most Powerful cable fault location system

Most Powerful cable fault location system-R 30 test van system

Adiradh energy offers Most Powerful cable fault location system-R 30 test van system  in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Cable Fault Location Van for Transmission feeder cable network R30 Download
