Product Details

Cable identifier CI/LCI

Adiradh offers the Megger CI/LCI Cable Identifier for accurate cable identification before cutting, jointing, termination, or repair work. Moreover, the system helps technicians find the required cable when several cables run together. Therefore, it can support cable checks in utility, industrial, and electrical maintenance work.

The CI system helps identify de-energized primary cables. In addition, the LCI system helps identify live secondary cables up to 240 V AC. Furthermore, the LCI-440 option supports live secondary cables from 240 V to 440 V AC.

The transmitter sends a DC pulse through the target cable. As a result, the pulse creates an electromagnetic field around the cable. The receiver then detects this field with a suitable sensor or flexible clamp. Moreover, the receiver checks the signal polarity and size to help the user identify the target cable.

.

Overview

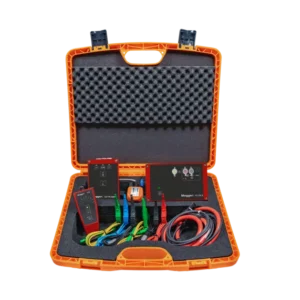

The Megger CI/LCI Cable Identifier is a portable system for identifying and verifying electrical cables. In particular, the CI configuration is intended for de-energized primary cables. Meanwhile, the LCI configuration is designed for identifying energized secondary cables within its specified voltage range.

Furthermore, the receiver evaluates characteristics such as signal polarity and magnitude. In addition, the system uses pulse characteristics to help distinguish the identification signal. Consequently, the operator can use the detected response to verify the required cable before starting electrical work.

---

Datasheet for Cable identifier CI/LCI

” text=”Download” force_dl=”1″ color=”purple” width=”100″ height=”30″]

User manual for Cable identifier CI/LCI

” text=”Download” force_dl=”1″ color=”green” width=”100″ height=”30″]

---

About Product

The Megger CI/LCI Cable Identifier provides a dedicated method for cable identification and verification. Therefore, it can be useful when several cables are installed together and visual identification alone is not sufficient. Moreover, the system supports different identification requirements through the CI and LCI configurations.

The CI system is intended for identifying de-energized primary cables. In contrast, the LCI configuration is designed for energized secondary cable identification up to 240 V AC. Furthermore, the LCI-440 option extends the specified application range to 240–440 V AC.

The CI-TX transmitter generates an identification pulse, while the CI-RX receiver detects the corresponding electromagnetic signal. Moreover, the receiver evaluates the signal response to help distinguish the target cable. As a result, the system provides a signal-based approach to cable identification during maintenance, installation, and repair activities.

Technology & Benefits

The Megger CI/LCI uses a controlled DC pulse identification method. First, the transmitter introduces the identification pulse into the cable. Consequently, an electromagnetic field is produced around the cable. The receiver then detects this field through the selected sensor or flexible clamp.

Furthermore, the receiver evaluates important signal characteristics, including polarity and magnitude. In addition, pulse shape and frequency can help differentiate the identification signal from other electrical signals. Therefore, the operator can assess the receiver response when identifying the required cable.

The system also provides flexible sensing options. For example, flexible clamps can be used around suitable cables, while touch sensors can provide an alternative where a conventional clamp cannot be fitted. Moreover, the transmitter can operate from an AC supply or its internal battery. As a result, the CI/LCI is suitable for a range of field cable identification applications.

Key Features

• Accurate cable identification and verification
• Moreover, suitable for de-energized primary cable identification
• Also supports energized secondary cable identification with the LCI configuration
• LCI applications up to 240 V AC
• Furthermore, LCI-440 option for 240–440 V AC applications
• Identification pulse up to 100 A
• Signal detection through electromagnetic field measurement
• Moreover, receiver evaluates signal polarity and magnitude
• Pulse characteristics assist cable identification
• Flexible cable clamp options
• Touch sensors for applications where a clamp cannot be fitted
• Internal battery operation for the transmitter
• Up to 50 hours of transmitter battery operation as specified
• Portable transmitter and receiver arrangement
• Different configurations for CI, LCI, and combined CI & LCI applications
• Suitable for electrical utility and industrial maintenance work

Applications

• Cable identification before cutting
• Moreover, cable identification before jointing
• Primary cable identification
• Secondary cable identification
• LV cable identification
• MV cable identification
• Energized secondary cable identification
• De-energized cable verification
• Furthermore, electrical utility maintenance
• Substation cable maintenance
• Industrial electrical maintenance
• Cable installation and commissioning
• Power distribution network maintenance
• Cable tracing and selection
• Electrical contractor applications
• Cable repair and maintenance activities

Advantages

• Provides a defined signal-based method for cable identification
• Moreover, helps distinguish the required cable from surrounding cables
• Reduces dependence on visual cable identification alone
• Supports both energized and de-energized applications through suitable configurations
• Furthermore, provides flexible sensor options for different cable arrangements
• Touch sensors provide an alternative where conventional clamping is difficult
• Multiple voltage configurations support different secondary cable applications
• Portable design supports field testing and maintenance
• In addition, transmitter and receiver operation simplifies the identification process
• Suitable for utility, industrial, contractor, and electrical maintenance applications

Adiradh Energy offers Cable identifier CI/LCI in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur; Durgapur; Kharagpur; Raigarh; Bhilai; Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities
