Product Details

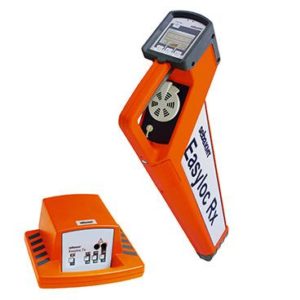

Cable Route Tracing And Identification System Easyloc RxTx

Adiradh offers the Cable Route Tracing And Identification System Easyloc RxTx, a professional utility location solution. Moreover, this system enables operators to trace cable runs and pipe networks with speed and simplicity. Consequently, users can stay safe, avoid damage, and minimize accidents during excavation or civil engineering work. In addition, the Easyloc RxTx provides both audio signals and visual confirmation at all times, ensuring reliable operation. Furthermore, the receiver displays the signal level received and marks the maximum with a marker, thus allowing precise localization. Also, depth measurement is possible at the push of a button when using active transmitter modes. Therefore, this system is ideal for water, rail, gas, power, highways, and telecommunication utilities. Additionally, contractors, groundworks teams, building firms, local authorities, and civil engineering companies benefit from its robust design. Finally, the Easyloc RxTx combines user-friendly operation with advanced detection capabilities, making it a trusted choice for professionals.

Overview

The Easyloc RxTx system is designed for uncomplicated and user-friendly determination of the location, orientation, and depth of metallic lines such as cables and pipes. Moreover, it can be used to probe areas for unknown lines or for locating specific lines with precision. In addition, the system features robust construction for use in poor weather and harsh environments, thus ensuring durability. Consequently, operators benefit from a simple, user-friendly operation concept with a minimum number of controls. Furthermore, the receiver shows the signal level received and marks the maximum, providing clear visual and audio feedback. Also, depth measurement is possible at the push of a button in active modes, enhancing efficiency. Therefore, the Easyloc RxTx is suitable for a wide range of applications including civil engineering, road construction, municipalities, and landscaping. Additionally, the system integrates seamlessly with existing workflows and is compatible with other location systems. Finally, its combination of passive and active signal modes makes it versatile for various utility detection tasks.elmack.

Datasheet for  Easyloc RxTx

User manual for Easyloc RxTx

About Product

The Easyloc RxTx location system incorporates advanced electromagnetic detection technology for identifying metallic conductors. Moreover, it operates across multiple frequency ranges including radio (15 kHz to 23 kHz), power network (50 Hz/60 Hz), and transmitter (32.768 kHz). In addition, the system features high sensitivity levels, with detection thresholds greater than 20 µA in radio mode and greater than 5 µA in transmitter mode at 1 m depth. Consequently, the receiver provides automatic depth determination when used with a transmitter, excluding the Basic model. Furthermore, the unit is dust and water protected in accordance with IEC/EN 60529 IP54 standards, ensuring operational reliability. Therefore, the Easyloc RxTx supports both general area probing and targeted line location with precision. Additionally, the transmitter delivers 0.5 W output power for effective signal coupling. Finally, the system operates for approximately 40 hours on 6 x IEC R20/D cell alkaline batteries under intermittent use.

Technology & Benefits

The Easyloc RxTx employs electromagnetic induction technology to detect and trace underground metallic utilities. Moreover, this technology enables operators to work with both audio signals and visual confirmation simultaneously, thus improving accuracy. In addition, the system’s automatic depth measurement feature allows quick depth readings at the push of a button in active modes. Consequently, users can minimize the risk of cable damage and enhance worksite safety. Furthermore, the robust IP54-rated construction ensures reliable performance in harsh environmental conditions. Also, the simple control interface reduces training time and improves operational efficiency. Therefore, civil engineering and road construction companies can speed up work while making optimal use of earth-moving equipment. Additionally, municipalities and public works departments benefit from the system’s versatility in locating various utility types. Finally, compatibility with other location systems allows seamless integration into existing workflows, thus maximizing return on investment.

Key Features

• Detects and traces cable runs and pipe networks with speed and simplicity

• Provides both audio signal and visual confirmation for reliable operation

• Automatic depth measurement at the push of a button (active modes)

• Robust IP54-rated construction for harsh environments

• Simple, user-friendly operation with minimal controls

• Multiple frequency ranges: radio (15–23 kHz), power network (50/60 Hz), transmitter (32.768 kHz)

• Compatible with other location systems for workflow integration

• 40-hour operating time on alkaline batteries (intermittent use)

Applications

• Water, rail, gas, power, and telecommunication utilities

• Highways and street lighting infrastructure

• Civil engineering and road construction projects

• Municipalities and public works departments

• Groundworks and building contractors

• Local authorities and road maintenance agencies

• Gardening and landscaping companies

• Fencing and general excavation work

Advantages

• Minimizes risk of cable damage and accidents during excavation

• Enhances worksite safety by accurately locating underground utilities

• Reduces project delays through fast and precise utility detection

• Durable design withstands poor weather and harsh conditions

• Easy to operate with minimal training required

• Versatile for locating various metallic lines including cables and pipes

• Cost-effective solution with long battery life

• Integrates with existing utility location workflows
