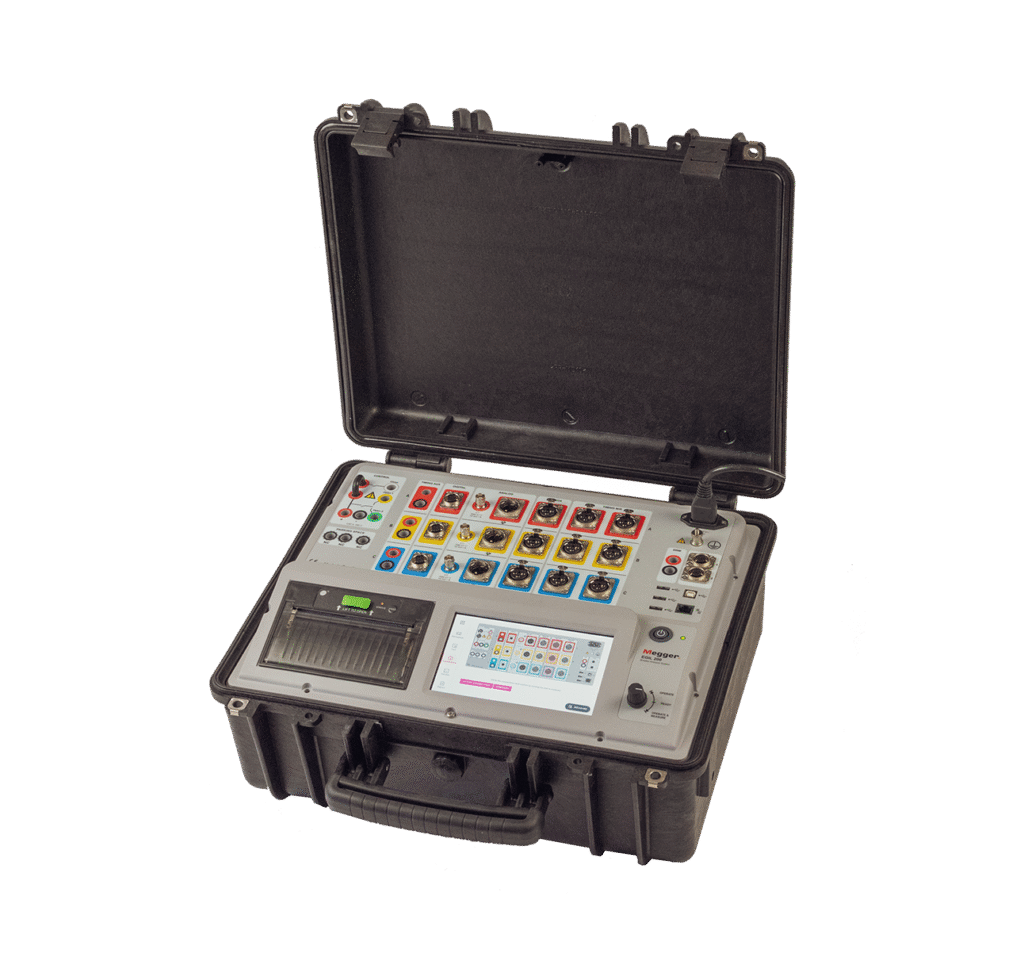

Circuit Breaker Analyser EGIL200

Adiradh offers the Circuit Breaker Analyser EGIL200 for accurate and reliable circuit breaker testing in power systems. Moreover, this advanced analyzer ensures precise timing and motion measurement for high-voltage and medium-voltage circuit breakers. Therefore, utilities and service engineers can verify breaker performance with confidence. In addition, the EGIL200 supports contact timing analysis, travel measurement, coil current analysis, and dynamic resistance measurement. Furthermore, it helps detect mechanical wear, contact erosion, and synchronization issues. Consequently, maintenance teams can reduce downtime and improve system reliability. Also, the instrument provides clear graphical results for quick evaluation. Thus, testing becomes faster and more efficient. However, complex breaker mechanisms demand accurate diagnostics, and the EGIL200 meets this need. As a result, operators can make informed maintenance decisions. Finally, the Circuit Breaker Analyser EGIL200 supports preventive and condition-based maintenance programs for substations and industrial power networks.

Overview

The Circuit Breaker Analyser EGIL200 is a modern breaker test system designed for comprehensive performance evaluation. It measures opening and closing times, contact synchronization, and coil current parameters. Moreover, it records travel and velocity using motion transducers for detailed mechanical analysis. Therefore, engineers can assess breaker mechanism condition accurately. In addition, the unit supports dynamic resistance measurement to evaluate contact integrity during operation. Furthermore, it captures analog and digital signals simultaneously for complete test documentation. Consequently, users gain precise insights into breaker health. Also, the system provides automated test sequences, which reduce manual errors. Thus, testing becomes consistent and repeatable. However, field environments can be demanding, and the EGIL200 is built for portable substation use. As a result, it supports commissioning, routine maintenance, and troubleshooting of HV and MV circuit breakers. Finally, the analyzer stores and exports results for reporting and asset management.

About Product

The Circuit Breaker Analyser EGIL200 is engineered for detailed diagnostic testing of circuit breaker systems. It performs Contact Timing Measurement with millisecond accuracy for main and auxiliary contacts. Moreover, it supports Motion Analysis using linear or rotary transducers to measure travel, velocity, damping, and overtravel. Therefore, mechanical performance can be evaluated precisely. In addition, Coil Current Analysis records trip and close coil current signatures to identify latch or coil faults. Furthermore, Dynamic Resistance Measurement (DRM) assesses arcing contact condition during operation. Consequently, contact wear and erosion can be detected early. Also, the instrument integrates Analog Channel Acquisition and Digital Input Monitoring for synchronized data capture. Thus, complex breaker mechanisms can be analyzed in detail. However, accurate diagnostics require stable sampling and signal processing, and the EGIL200 ensures high-resolution data logging. As a result, it supports IEC-compliant testing procedures for HV and MV circuit breakers.

Datasheet for Circuit Breaker Analyser EGIL200

User manual for Circuit Breaker Analyser EGIL200

Technology & Benefits

The Circuit Breaker Analyser EGIL200 uses high-speed data acquisition and synchronized channel recording for precise results. Moreover, its timing channels provide accurate contact separation and closing measurements. Therefore, synchronization errors can be identified quickly. In addition, motion transducer inputs enable detailed travel curve analysis. Furthermore, integrated coil current monitoring helps detect mechanical binding and electrical faults. Consequently, maintenance becomes predictive rather than reactive. Also, dynamic resistance testing evaluates contact integrity under real operating conditions. Thus, early detection of contact wear is possible. However, complex breaker designs require reliable analysis tools, and the EGIL200 ensures consistent measurements. As a result, utilities can reduce unplanned outages. Finally, automated reporting simplifies documentation and compliance. Therefore, the analyzer improves asset reliability, extends breaker life, and enhances overall substation safety while supporting condition-based maintenance strategies.

Key Features

• Accurate contact timing measurement for HV and MV circuit breakers

• Motion and travel analysis with velocity and damping calculation

• Coil current analysis for trip and close circuits

• Dynamic resistance measurement (DRM) capability

• Simultaneous analogue and digital signal recording

• Automated test sequences and data storage

• Portable design for substation field testing

• IEC-compliant breaker testing procedures

Applications

• High-voltage circuit breaker testing

• Medium-voltage breaker maintenance

• Substation commissioning and routine inspection

• Preventive and condition-based maintenance programs

• Troubleshooting breaker synchronization issues

• Mechanical and electrical performance diagnostics

Advantages

• Precise and repeatable measurement results

• Early detection of contact wear and mechanism faults

• Reduced downtime and maintenance costs

• Improved breaker reliability and safety

• Comprehensive data recording and reporting

• Supports asset management decisions
