Hipot High Voltage DC Dielectric test sets

Regular insulation testing using HVDC Test kits is one of the most cost effective methods of identifying aging in any type of electrical equipment. With over 60% of equipment failures being ascribed to insulation breakdown, it is a key area to monitor for early identification of potential failure problems with help of Dielectric HV DC test sets.

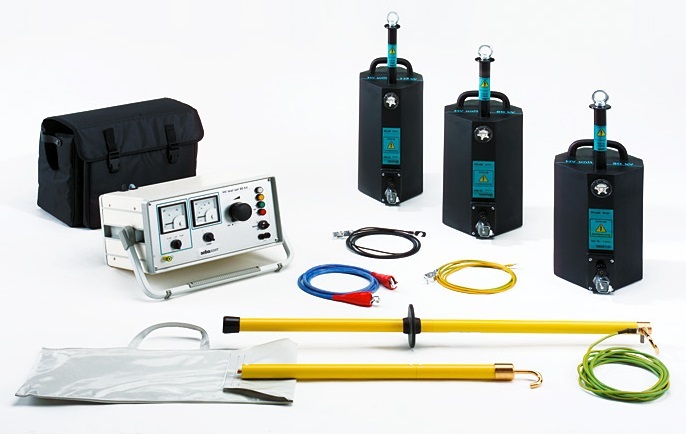

HV test set 50 kV, HV test set 80 kV and HV test set 110 kV

HV Test Set is a cable tester for DC voltage testing of cables and cable installations in accordance with the international standards. It consists of an operation unit and HV unit. Due to its small size and low weight the test sets can easily be transported and used on-site. The HV Test Set is available in three versions (50/80/110 kV DC).

HV-Test-Set

HV DC Test Kits 50kV-80kV-110kV

Brochure for HV DC Test sets 50KV 80KV 110KV

Download

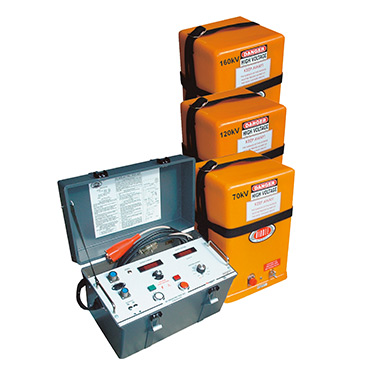

High Voltage DC Dielectric 70KV,120KV and 160 kV Test Sets

High Voltage DC Dielectric Test Sets 220000 series  70KV, 120KV and  160 kV provide the most dependable, portable dc high-   voltage sources for checking the quality of electrical power cables, motors, switchgear, insulators, transformers and capacitors. Each portable is comprised of two separate modules

70KV,120KV and 160 kV Test Sets

HV DC Dielectric 70KV,102KV and 160 kV Test Sets

Brochure for High Voltage DC Dielectric 70KV,120KV and 160 kV Test Sets 220000 series

Download

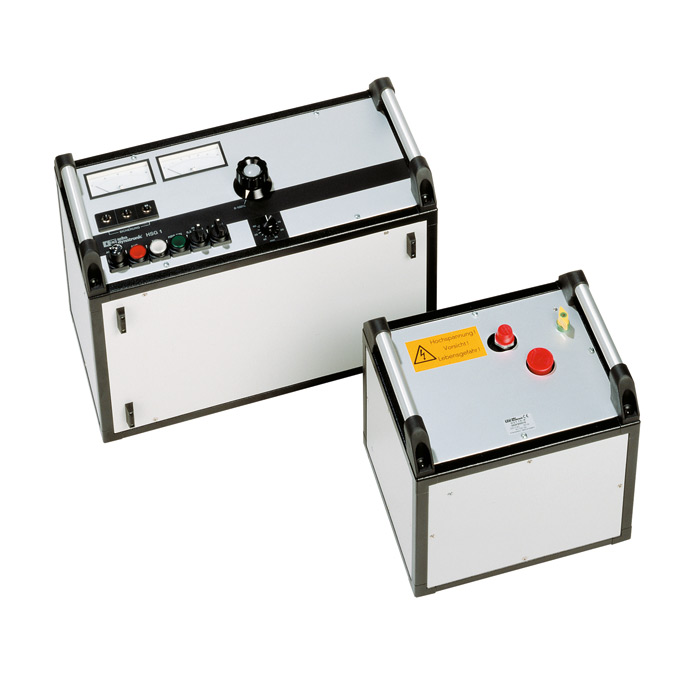

High potential tester (HIPOT)- HPG70-K

High voltage test set HPG 70-K from SebaKMT is a fully insulated test set for DC testing up to 70 kV. Thanks to its fully insulated design this system is ideal for stand-alone applications. The DC voltage is obtained through a bridge rectifier which ensures a very low ripple of the test voltage. Moreover the DC voltage is measured on the secondary side and therefore ensures a precise output voltage.

High potential tester

High potential tester (HIPOT)- HPG70-K

Brochure for High potential tester (HIPOT)- HPG70-K

Download

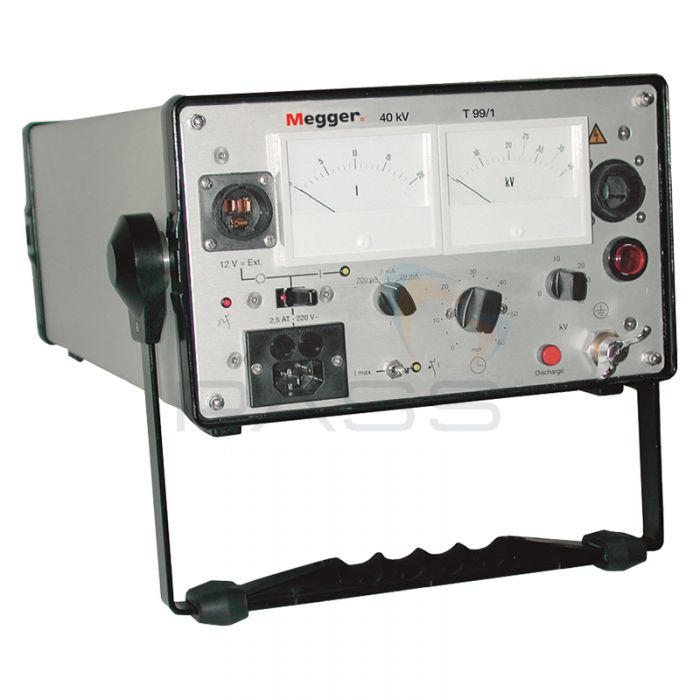

High potential tester (HIPOT) T99/1

High voltage test unit T99/1 is a portable and powerful test device able to generate a DC voltage of up to 40 kV. The T 99/1 is used for testing of cables, cable accessories, plant and installations. Because of the short-circuit proof design and high output current of the T 99/1, this is device is also suitable for cable fault location (in conjunction with a TDR unit).

High voltage test unit

High voltage test unit T99/1

Brochure for High Potential Tester HIPOT 40KV T99

Download

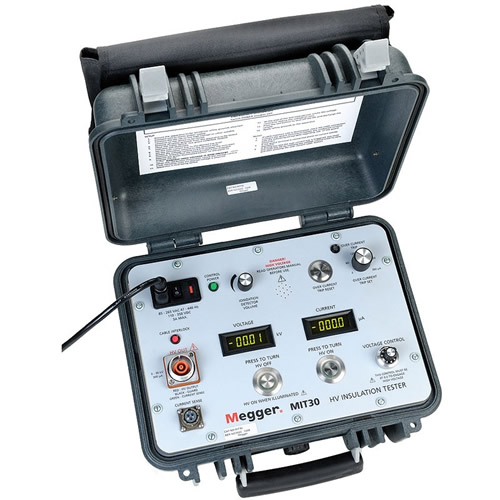

30 kV  High voltage Insulation tester–MIT30

MIT30 is a 30 kV Insulation tester that has been developed to satisfy the demand for a variety of high voltage, high accuracy, low current applications in electrical distribution industries, aerospace and defense applications. The MIT30 cannot be used on grounded/earthed test samples. Otherwise, the unit will be damaged. The unit offers unparallel accuracy and resolution, with a high voltage output from 0 to 30 kV dc., trip levels from 0 – 360 µA and a resolution of 1 nA (±1.5%). The MIT30 represents excellent precision in a field instrument, and gives the operator confidence in the meaningful results. The MIT30 can be used to perform step-voltage and proof tests which, when incorporated into a routine maintenance program, can aid in predicting potential failure before breakdown occurs.

High voltage Insulation teste

High voltage Insulation tester–MIT30

Brochure for  30 kV  High voltage Insulation tester

Download

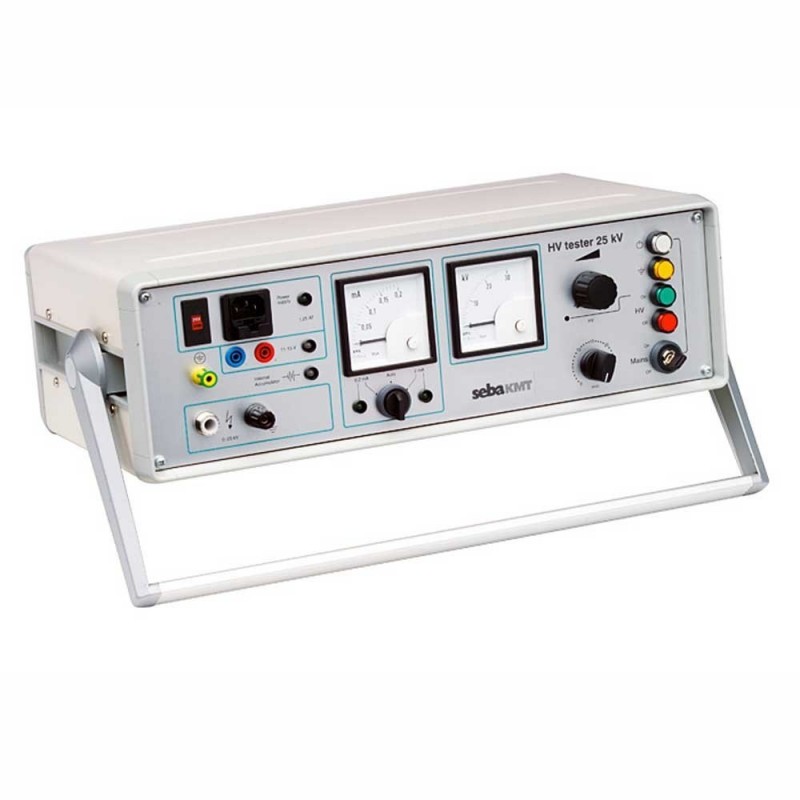

HV Tester 25 kV-High voltage generator

HV Tester 25 kV is a high-voltage generator with a variable negative DC output voltage of 0 – 25 kV. The condition of the test object with regard to electrical strength and insulation quality can be determined on the basis of the unit’s readings for output voltage and current. Due to its small size and internal battery this test-system is ideal for test-conditions where no external power supply is available.

High voltage generator

HV Tester 25 kV-High voltage generator

Brochure for HV Tester 25 kV-High voltage generator

Download

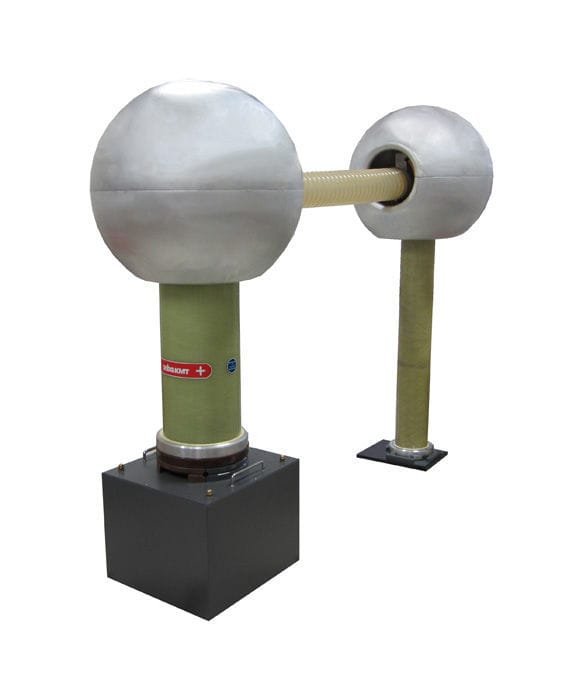

HVDC200, HVDC400, HVDC650 and HVDC800

HVDC200, HVDC400, HVDC650 and HVDC800 high-voltage test sets are efficient, mobile systems for high-voltage testing of cables, cable systems and installations as required by current regulations (VDE) with DC voltages of up to 200 kV, 400 kV, 650 kV and 800 kV respectively. The sets are suitable for both installation in measuring trailers and onsite testing as stationary test set.The sets are primarily designed for power supply companies, cable laying firms and cable manufacturers for the DC voltage testing of high-voltage systems and cables. Their short-circuit-proof output circuit and high power make them suitable for use in fault location as a burn-down unit for burning high-impedance and intermittent cable fault.

HIGH VOLTAGE TEST SETS

HVDC200, HVDC400, HVDC650 and HVDC800

Brochure for HV DC Series HVDC200, HVDC400, HVDC650 and HVDC800

Download
