HV Cable Fault Location equipment & LV Cable Fault locators

Cable fault location process has multiple steps and it’s vital that it’s completed as quickly and safely as possible to minimise the time that customers are without supply. Adiradh Energy offers  wide range of  High voltage cable fault locating systems  and Low voltage  cable fault locators  in India that have been supply from Megger-SebaKMT brand has over 100 years experience in developing and manufacturing dedicated cable test and diagnostic equipment.

Cable Test and Fault Location System Surgeflex SFX32 suitable up to 33KV Cables

Surgeflex SFX  32 is a mobile system for testing and fault locating on low and medium voltage cables. The test and surge voltage of up to 32 kV makes the SPG 32 suitable for all low voltage and medium voltage cable networks available in Hyderabad , Chennai, Bangalore and all over India . The ARM (Short time Arc Reflection Method) is used for prelocation of high resistance faults up to 32 kV. The burning of faults is possible in all voltage levels by short-term burning.The Teleflex T30-E offers integrated user guidance and single button rotary encoder operation shows automatically the far end of cable and fault distance in the ARM®-Mode.The “Step-by-Step Easy Mode” guides even inexperienced users through the fault locating process to an successful location.

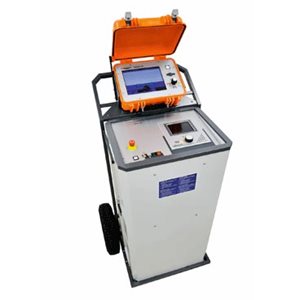

Portable 33KV Cable fault locator

Portable 33KV Cable Fault locator-Surgeflex SFX32

The alternative “Expert-Mode” provides free access to all parameters for comprehensive fault locating even under difficult conditions.1750 Joules (optional 3500 J) of surge energy provide the necessary high power for fast and accurate pinpointing cable faults by the acoustic method. The portable Surgeflex SFX 32 is mounted on a trolley with large wheels which makes the unit suitable for easy field operation. The system can also be fixed installed into a vehicle. Adiradh Energy offers  Portable cable fault locating equipment models SFX32-1750-P-SX-N,SFX32-M 4KV 1750J SX N and SFX32-3500-M-SX-N TEST-Van versions 32KV 3500J  in India

Overview of SFX32

  • Safe and fast fault location with latest Teleflex SX technology
  • High surge energy for effective pinpoint locating
  • Various fault location methods included
  • DC Testing up to 40 kV ARM, ICE and Decay Method integrated
  • Operation by VGA Display and single button rotary encoder
  • High surge energy for the acoustic pinpointing of 1000 J with the option of 2000 J
  • Surge voltage levels for MV cable 0 to 12.5 or 25 kV or 0 to 16 or 32 kV
  • Surge voltage levels for lower voltage 0 to 3 or 6 kV or 0 to 4 or 8 kV
  • Integrated safety system

Adiradh energy offers HV portable Cable fault locating equipment’s SFX32 in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for  HV Cable Fault Locator 32KV,1750 Joules  SFX32 Download

Surgeflex 12 and 16 Portable cable test and fault location system for medium and low voltage power cables

Adiradh Enrgy offers two models  Surgeflex 12-1100 and Surgeflex 16-2000   for more info

Cable test and fault location system  multifunctional Surgeflex SFX40 suitable up to 66KV Cables

SFX 40 is a portable multi-functional system for testing, fault conditioning pre-location and pinpointing of faults in medium and low voltage networks.The compactness in size and weight has been made possible using an electronic HV source, switchable capacitors and a compact HV switching system.The control panel of the SPG 40 is integrated into the unit and it is also available as a separate control box for flexible installation and operation. The main operation is done with one single rotary control button. Functions and settings are displayed on a clearly structured display.The SFX40  semi automatic cable fault locating system software supports easy handling and successful operation even by infrequent users, ensuring safety and optimum results.

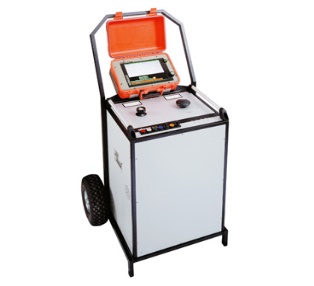

MULTIFUNCTIONAL CABLE TEST AND FAULT LOCATION SYSTEM SFX40

CABLE TEST AND FAULT LOCATION SYSTEM SFX40

■Easy to operate using the selector knob on the Teleflex SX or the touchscreen

■High surge energy up to 2,000 joules
■Voltage source with 40 kV
■All HV location methods integrated:ARM, ICE, DECAY, ICE Plus
■Sheath fault location up to 10 kV
■Maximum safety thanks to external safety equipment and integrated isolating transformer
■Reflectometer can be used separately

Adiradh energy offers HV Cable Fault Location Systems trolley Mounted  SFX 40 in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Portable multifunctional  Cable test and fault location system  Surgeflex SFX 40 Download



Portable Cable Fault Locating System SMART THUMP ST25-30

Adiradh Energy offering  Portable Cable Fault Locating System SMART THUMP ST25-30 which  provides safe, efficient and extremely easy-to-use solutions for quickly identifying, prelocating and pinpointing various types of cable faults for power cables. The ST25-30 is developed to meet the requirements for typical medium-voltage distribution cable fault location markets from 11 to 35 kV system voltage.

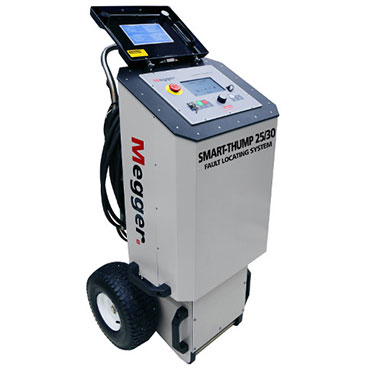

Modular cable fault locator

Smart thump25_30 Modular cable fault locator

Overview of SMART THUMP ST25-30

  • Delivers 1600 J at 12.5/25 kV
  • 30-kV DC high voltage proof/burn and displays insulation resistance
  • E-Tray automatic test sequence to proof test, prelocate and pinpoint
  • ARC reflection MV cable prelocation
  • ICE MV cable prelocation
  • Multi-shot technology for ARM*
  • Earth gradient LV fault locating and sheath fault locating
  • Interprets test results for user
  • 7.0 in HiBrite color display
  • IP53 rating for wet environments
  • Safety/grounding check
  • USB interface

Brochure for Portable cable fault location system SMART THUMP ST25-30  Download

16KV Portable Cable Fault locating system Megger Smart Thump ST16

Adiradh Energy offers Megger make Portable/Truck Mount Cable Fault Location System 16 KV Model SMART THUMP ST16  Delivers 1500 J at 8/16 kV,16-kV DC high voltage proof test and insulation resistance test E-TRAY automatic test sequence to proof test, prelocate and pinpoint,Interprets results for user 5.7 in. Hi-Brite color display ,Safety / grounding check (F-OHM) ,USB interface.SMART THUMP ST Series of cable fault locators provides safe, efficient and easy-to-use solution for quickly identifying, prelocating and pinpointing various types of cable faults for power cables. The ST Series was developed to meet the requirements for typical low- and medium-voltage distribution cable fault location markets.

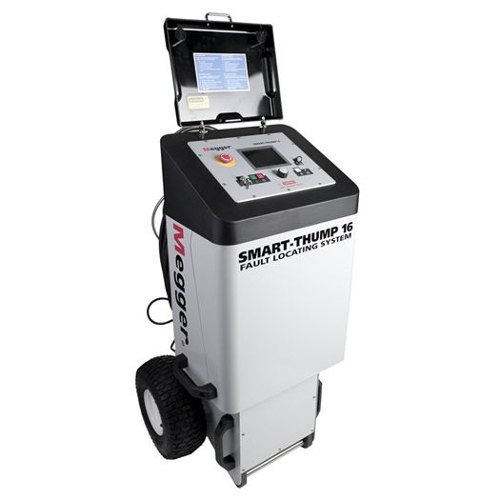

Megger Smart Thump ST16 Cable fault locator -Adiradh Energy Pvt Ltd

Smart Thump 16 Portable cable fault locator

MEGGER SMART THUMP ST16 FEATURES INCLUDE:
  • Delivers 1500 J at 8/16 kV
  • 16-kV DC high voltage proof test and insulation resistance test
  • Easy Go automatic test sequence to proof test, prelocate and pinpoint
  • Interprets test results for user
  • 5.7 in. transflective color display
  • Safety / grounding check
  • USB interface

Adiradh energy offers 16KV Portable Cable Fault location system Smart Thump ST Series  in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for 16KV Portable Cable Fault location system Smart Thump ST Series Download

11KV Portable Cable  Fault Location System  for MV Networks EZ-Thump 12KV

EZ-Thump series are the most portable fault location systems on the market. It utilises the “Easy Go” test system, which is easy to operate, interprets the results and requires minimal training to find faults.On-board is a TDR with a 7.6 km range and arc reflection at 4 or 12 kV respectively for pre-locating. For pinpointing, the EZ-Thump offers a surge energy of 500 J, d.c. testing for breakdown detection and insulation resistance measurement. The units are operated from line or the internal battery. They can fit in the boot of a car, making them ideal for a flexible quick response fault finding strategy.The 12 kV model can be used as part of a “satellite” fault locating concept for remote areas that may have less frequent faults, when ease of operation, light weight and economics are important, or for hard to access inner-city locations.

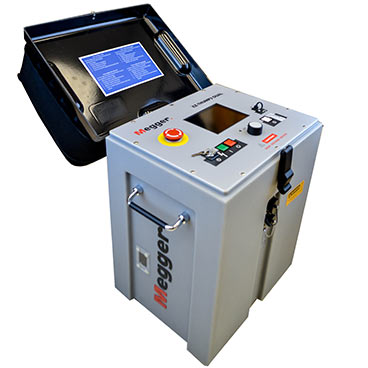

Portable cable fault locator for 11 KV Cables

11KV Cable Fault Locator-EZ Thump 12 KV

Adiradh energy offers 11KV  portable Cable Fault Locator  EZ-Thump 12KV in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for 11KV Cable Fault locator  EZ Thump 12 KV Download

LV  Cable Fault locators  EZ-THUMP 3 kV and EZ-THUMP 4 kV

Dual stage 500 J surge energy at 1.5 kV and 3.0 kV EZ-Thump 3kV only, Single stage 500 J surge energy at 4.0 kV EZ-Thump 4kV only. Weighing as little as 32 kg the EZ-Thump 3 kV is the first of its kind in the market and with updated EZ-Thump 4 kV this series are the most portable fault location systems specifically for shielded and unshielded low voltage power cable. They use the “Easy Go” test system, which is easy to operate, interprets the results and requires minimal training to find faults. On-board is a TDR with a 7.6 km range and arc reflection at 3 or 4 kV respectively for pre-locating. For pinpointing, EZ-Thump offers a surge energy of 500 J, at 1.5 and 3 kV or 4 kV respectively, d.c. testing for breakdown detection and insulation resistance measurement.

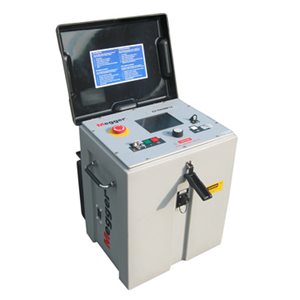

HIGHLY PORTABLE FAULT LOCATION SYSTEMS EZ-THUMP

LV cable Fault Locator -EZ-Thump

Adiradh energy offers  Portable LV  Cable Fault Locator EZ Thump 4KV&EZ Thump 3KV  in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for LV Cable Fault locator  EZ Thump 4KV&EZ Thump 3KV Download
