Cable test and diagnostic systems

Underground HV and EHV network  operators can now get faster and significantly more reliable information about the quality and the condition of their cables.Cable testing and diagnostics provides information about the cable’s condition and will reveal localised problems, such as poor joints and terminations; it will also reveal localised weak spots in the insulation. Generally VLF waveform, which is ideal for commissioning tests, there is also the option of generating a DAC voltage. Adiradh Energy Offers Megger make HV cable Test and diagnostic systems TDS NT,TDM45, MV DAC30, EHV cable Test and diagnostic systems HV DAC Series ,Online PD Scanner PD Scan, Online PD Substation Surveying System UHF PD Detector, Partial Discharge Tester PD LOC, Partial discharge detector TE PDS.

   Test and diagnostic system for  HV cables

Cable testing and diagnosis -TDS NT

Adiradh Energy offers revolutionary new TDS NT is a unique, all-in-one cable testing and diagnosis system. It offers two well-proven wave forms – Very Low Frequency Cosine Rectangular (VLF CR) for withstand testing and Damped AC voltage (DAC) for non-destructive Partial Discharge diagnosis. These can be used to test cables to international standards such as the IEEE 400.3 and IEC 60502-2. The TDS can also be used for DC tests and sheath tests to the IEC 60229 standard. When paired with a step voltage sensor, it can even be used for precise pinpointing of sheath faults.The DAC voltage has proven to be the ideal voltage waveform for a non-destructive PD diagnosis.With the 50 Hz Slope Technology for the first time, a withstand test with VLF cosine-rectangular voltage (VLF CR) and PD diagnosis with damped alternating voltage (DAC) is combined in one unit.The important fact here is that the PD measurement data, gained with the VLF CR or with the DAC test voltage, can be compared directly with the 50 / 60 Hz network voltage.TDS NT  system have two models   TDS NT 40  with PD Detector PDS 60 and TDS NT 60 with PD Detector   PDS 60.
Cable Test And Diagnosis

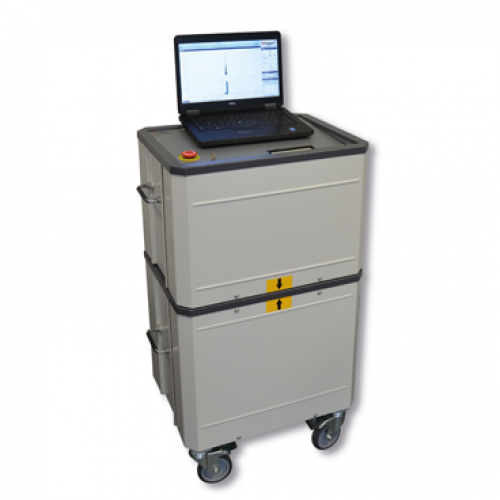

TDS NT Cable Test And Diagnosis system

Overview of TDS NT

  • Two proven voltage wave shapes in one device
  • Standard compliant VLF cable testing with accompanying PD diagnosis
  • Non-destructive PD diagnosis by means of proven DAC voltage
  • 50 Hz Slope Technology for a direct comparison with the power frequency

In addition to the proven VLF and DAC test voltage the TDS can also be used for DC tests and sheath tests in compliance with IEC 60229.It can be used to test cables according to the international standards (e.g. IEC 60502-2 and IEEE 400.2) with VLF-CR. In addition, a PD diagnosis using the new 50 Hz Slope Technology, can be performed simultaneously with the help of the PD detector. Alternatively, the TDS NT can also be used for PD diagnosis with the proven damped AC voltage (DAC).

PD Detector PDS 60  Features

  • Suitable for DAC, VLF CR and VLF Sinusoidal power sources up to 60 kVrms
  • Powerful database. Simplified searching, browsing and administration of measurement and cable data.
  • Fully automatic calibration with the option of calibrating according to cable length or propagation velocity.
  • Clear display of measurement results and live PD localization. A time-consuming post-processing of the measured data is no longer necessary.
  • Report generation by mouse click.
  • Real-time data evaluation and display of results, no post processing needed
  • General and localized Phase Resolved PD pattern (PRPD) display for defect type recognition

PDS 60 has become possible to immediately locate faults in underground cables during the actual PD measurement.PD detector software will support the user with the data evaluation by means of so called Phase Resolved Partial Discharge (PRPD) patterns. With help from these PRPD patterns the user is able to distinct between different types of PD defects, such as corona or internal PD. This is of major importance for partial discharges located at terminations; corona discharges are not  problematic, where-as internal PD would.

Adiradh Energy offers Cable testing and diagnostics TDS NT in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities



Brochure for Cable test and diagnosis system TDS NT Download

Cable test and diagnosis system-TDM45

Adiradh energy offers TDM 45 series which  is a revolutionary breakthrough in testing and diagnosis of MV cables. The modular concept allows the engineer to individually set-up the unit based on the type of job that needs to be executed. If e.g. withstand testing on short cable lengths need to be performed then only one module is needed. When part of the task is also to perform a partial discharge diagnosis then an additional module is needed.

Cable test and diagnosis system

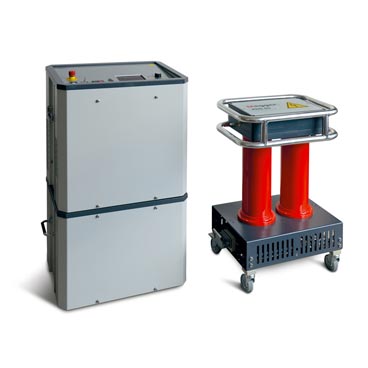

Cable test and diagnosis system-TDM45

Overview of Cable test and diagnosis system-TDM45

  • Cable testing, cable diagnosis and sheath testing in one device
  • Enables standard compliant high power VLF testing at 0.1 Hz (5 µF @ 40 kVrms)
  • Internal tanDelta measurement with automatic result interpretation
  • Partial discharge diagnosis using VLF Sine wave, Damped AC or 50/60 Hz Slope technology voltages
  • Cable testing, cable diagnosis and sheath testing in one device
  • Enables standard compliant high power VLF testing at 0.1 Hz (5 µF @ 40 kVrms)
  • Internal tanDelta measurement with automatic result interpretation
  • Partial discharge diagnosis using VLF Sine wave, Damped AC or 50/60 Hz Slope technology voltages

TDM45 have three modules depending on user application  has to select

  • VLF Sinus 45 kV for standard compliant withstand testing of short cables and dielectric loss measurements.
  • Boost module:VLF Booster 40 kV for standard compliant withstand testing of long cables up to 20 km length at maximum test voltage and 0.1 Hz test frequency.
  • Partial discharge module: PDS 60 for partial discharge (PD) diagnosis, can either be used with the base module only, or also in conjunction with the boost module to perform PD measurements at Damped AC voltages or 50/60 Hz Slope.

TanDelta Diagnostics

  • Optional full-fledged, internal tanDelta step test with automatic result interpretation to IEEE 400.2
  • Meaningful Voltage Withstand Diagnosis (VLF test and tanDelta diagnosis in one step)

Partial discharge diagnosis

  • Powerful database: Simplified searching, browsing and administration of measurement and cable data.
  • Fully automatic calibration with the option of calibrating according to cable length or if cable length unknown by propagation velocity.
  • Clear display of measurement results and live PD localization. A time-consuming post-processing of the measured data is no longer necessary.
  • Phase Resolved Partial Discharge (PRPD) pattern display
  • Monitored withstand testing in VLF Sine Wave, VLF CR and DAC mode
  • Report generation by mouse click.

Adiradh Energy offers Cable testing and diagnostics TDM45 in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for  Cable test and diagnosis system TDM45 Download

30 kV Damped AC System – MV DAC30

MV DAC30 is a 30 kV Damped AC (DAC) cable test set with Partial Discharge (PD) diagnostic capabilities. It can be used detect and map PD activities in real-time for immediate evaluation of test results. It is the first system in the world to integrate both the power source and PD coupler into a single portable unit. This revolutionary design eliminates operator and environmental exposure to high-voltage potential, ensuring the highest level of electrical safety.

Cable Test and diagnosis system

Cable Test and diagnosis system-MV DAC30

Overview of MV DAC30

  • Peak damped AC (DAC) voltage of 30 kV
  • Fully enclosed partial discharge (PD) detector eliminates operator exposure to HV potential
  • Real-time detection and mapping of PD
  • Performs testing to IEEE 400.4 standards
  • Two module design for easy handling and transport

Adiradh Energy offers Cable testing and diagnostics MV DAC30 in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for  Cable test and diagnosis system MVDAC30 Download

Test and diagnostic system for  EHV cables – HV DAC Series

Adiradh Energy offers HV DAC series which is designed for after-laying testing on newly installed HV-cables as part of quality control, and for condition assessment on repaired or service-aged HV-cables.The key benefit of this test set is the compactness versus testable capacity. With this transportable unit, cables with a length up to 32 km can be tested. In addition set-up within a substation is also no problem; no more roadblocks needed compared to using resonance test sets on large trucks. As of its portability and short set-up time it is possible to quickly respond on changing weather conditions. Because of its low weight there are no special requirements needed for road conditions. Air transport is also no problem, keeping transport times to a minimum and maximising the efficiency in use of the system.

Test and diagnostic system for HV and EHV cables

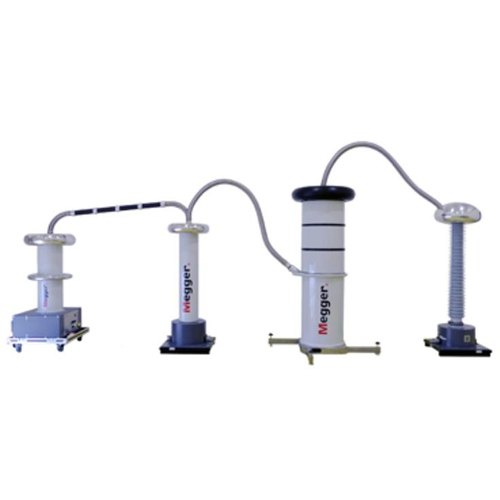

Test and diagnostic system for HV and EHV cables – HV DAC Series

The test set incorporates a partial discharge (PD) detector, allowing monitoring the quality of workmanship and the condition of the cable. The PD measurement system is state of the art with live evaluation, localization and display of results. Maintenance activities can be directly planned during the actual measurement. All data is stored in a powerful cable data base, where data can be easily accessed again, and reports printed.

Overview of HV DAC 300

■ Designed for testing and diagnostics   on cables rated up to 230 kV

■ Multifunctional: cable withstand testing   & PD Diagnosis in a single system

■ Allows a monitored commissioning test   acc. to IEC 62067 and IEEE 400.4

■ Highly adaptable thanks to the portable   design

Stages of Testing

Manufacturing :Testing done with 50Hz power source/Impulse.

On Field :Installation Testing and  Acceptance Testing

In Service Life : After Repair,  as Maintenance Test.

Today’s  practices for commissioning testing on EHV cables

HV DAC testing with PD-measurement:The HV DAC testing has, based on its advantages, won on popularity. The frequency of the test voltage is depending on the cable length between 20 and 300Hz.All available DAC test systems are equipped with a PD Detector.

HV DAC Technology

  • Test and diagnosis described by IEEE 400.4
  • Voltage range accordingly to IEC 60840 and HD S3 632 2017 standards.
  • Possible to test and diagnose 66kV – 220kV cable range 
  • Suitable for condition assessment of any cable type
  • Trusted technology and IEC 60270 PD detection inc. TDR localization

Cable Sheath Integrity mandatory Testing Test  while commissioning of  EHV Cables

To determine the healthiness of Cable Sheath after installation.  Method: Application of 10KV DC on sheath with respect to ground for a duration of 60sec. Leakage current is monitored and it should be within allowed limits.

Proof Test/ Withstand test. Purpose

  • To check the healthiness of cable insulation, Joints and terminations according to IEC 62067 and IEEE400.4
  • Method: IEEE 400.4 field guide specifies Damped Alternating Current or DAC as a very effective test technique to ensure the integrity of cable insulation.
  • Total 50 DAC excitation are applied on each phase. Frequency of the DAC ranges between (20Hz to 500Hz)

Partial Discharge Measurement Purpose To check the quality/workmanship of cable insulation, Joints and Termination and to identify weak spots to repair it before energizing. Partial Discharge measurements are carried out by applying DAC voltage according to Partial Discharge measurements are carried out by applying DAC voltage according to technique and IEEE400.3

For the decision making process the measurement data is the most important part: PDIV vs PDEV

 PDIV (Partial Discharge Inception Voltage)

In general: the lower the PDIV is, the more critical the PD affected spot should be considered • For PILC: PDIV has to be monitored over time – PDIV remains constant: good sign – PDIV decreases: sign of ageing

PDEV (Partial Discharge Extinction Voltage)

Only of importance if PDIV > U0 • If PDEV < U0, then there is a high chance that the PD is always present at operating voltage

Adiradh Energy offers EHV Cable testing and diagnostics  in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Test and diagnostics system for EHV cables Download
