Insulation diagnostic analysers-DFRA-Dielectric response analyser

Dielectric frequency response (DFR) testing delivers a very reliable and accurate moisture assessment of the insulation and the conductivity of the oil. A thorough review of DFR elucidates why this is a better tool for moisture assessment than traditional moisture in oil measurement, which deduces the moisture content in cellulose from the measured moisture in oil.Megger’s IDAX is a best-in-class dielectric response analyzer and the only instrument that can perform true FDS measurements (which is the preferred DFR method due to its robustness against noise) all the way down to 0.1 mHz in record time. A noteworthy accessory for the IDAX is the VAX, an amplifier that boosts the output signal of the IDAX to 2 kV, which may be important for low capacitive specimens, particularly CTs, to obtain meaningful moisture measurements.

Insulation Diagnostics analyser-IDAX300/350

Adiradh Energy offers Megger make Insulation Diagnostics analysers Megger make Models IDAX300 and IDAX350 provide an accurate and reliable condition assessment of insulation in transformers, bushings, generators and cables. Dielectric response analyser IDAX series are smaller, lighter, faster and maintains better accuracy and ability to provide reliable data using true AC DFR (Dielectric Frequency Response), also known as FDS (Frequency Domain Spectroscopy), for reliable test results in high interference environments up to 765 KV Substations

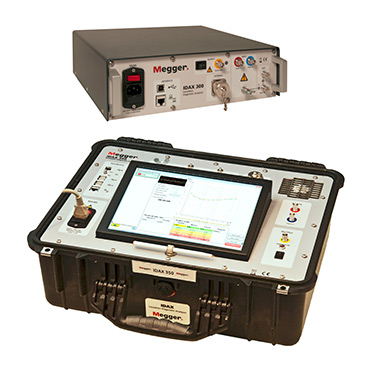

IDAX 300/350

Insulation Diagnostic Analyzers-IDAX 300/350

IDAX is an insulation diagnostic analyser based on DFR (Dielectric Frequency Response), also known as FDS (Frequency Domain Spectroscopy). DFR technology is an established test procedure in laboratories that in an innovative effort by Megger has been adapted for field use in the IDAX range of instruments.

In short, DFR-Dielectric frequency response analyser  is the measurement of capacitance and losses (dissipation factor (tanδ) or power factor) over multiple frequencies. The measured DFR curve is dependent on insulation geometry, moisture, oil conductivity and temperature and through advanced fitting to a reference material model moisture content, predominantly in solid insulation, oil conductivity at 25°C reference temperature and tanδ at 20°C reference temperature can be calculated. In the calculations ITC (Individual Temperature Correction), another important Megger innovation is used to translate test data from the test object temperature to the reference temperatures.

Features of Dielectric  frequency response analyser IDAX 300/350

  • State-of-the-art measurement of moisture content, tan delta / power factor and oil conductivity using DFR (Dielectric Frequency Response)
  • Easy-to-use: Software with automated measurement flow and analysis of test results “Traffic light” interpretation of test results
  • Dedicated test procedures for power transformers, bushings and current transformers
  • Automated individual temperature correction (ITC) for accurate comparison with reference data/tests
  • Reliable measurements even in high-interference environments
  • Interfaces to high voltage amplifiers
  • Versions with or without on-board computer

The IDAX DFR method is now part of international guides and standards e.g. Cigre TB 254, Cigre TB 414, Cigre TB 445, Cigre TB 775, IEEE C57.152-2013, IEEE C57.161-2018

IDAX is available in multiple versions:

  • IDAX 300 – A compact and light 3-channel input (red, blue and ground), 3 terminal (generator, measure and guard) and one ammeter instrument for use with an external computer that runs the IDAX diagnostic software.
  • IDAX 300/S – Same as IDAX 300 but with two ammeters for two simultaneous measurements.
  • IDAX 350 – Same as IDAX 300/S but housed in a rugged and waterproof case together with an onboard computer that can also be used to control other Megger instruments.

Brochure for Insulation Diagnostic Analyzers-Dielectric response analyser-IDAX300/350 Download

Adiradh energy offering   Insulation diagnostic analysers- Dielectric response analyser- IDAX300 and IDAX350 in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

High voltage amplifier -VAX020

VAX 020 High voltage amplifier  expands the IDAX test voltage range from 200 V to 2 kV. This improves the capability to perform accurate measurements in extreme high interference environments e.g. HVDC substations. Besides 50/60 Hz capacitance and dissipation factor (power factor) measurements, the application gives valuable information about the general condition of any high voltage insulation by measuring its dielectric response. The technique is also capable of assessing the moisture content in oil/paper insulation systems.

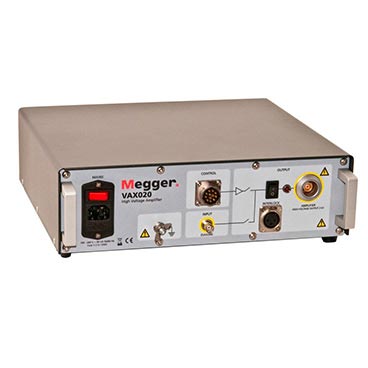

VAX020

HIGH VOLTAGE AMPLIFIER-VAX020

Features of VAX020

  • Separate high voltage amplifier enables capacitance and dissipation factor measurements at 2 kV test voltage
  • True and proven DFR/FDS technology for highest performance
  • Large frequency range, DC to 1 kHz
  • Compact design, weight < 5 kg

Brochure for High voltage amplifier -VAX020 Download

Adiradh energy offering   high voltage amplifier -VAX020 in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Insulation diagnostic analyser-IDAX322

Adiradh Energy offering Insulation Diagnostic analyser IDAX 322 is a high voltage insulation diagnostic instrument based on DFR (Dielectric Frequency Response), also known as FDS (Frequency Domain Spectroscopy). DFR is a measurement technique in which capacitance and losses (dissipation factor/tan delta or power factor) is measured over multiple frequencies to assess insulation condition in test objects such as power transformers, bushings and instrument transformers. DFR technology is an established test procedure in laboratories that in an innovative effort by Megger has been adapted for field use in the IDAX range of instruments.

INSULATION DIAGNOSTIC ANALYSER

INSULATION DIAGNOSTIC ANALYSER-IDAX322



In these types of test objects, issues are most often not visible at conditions at which it is easy to perform diagnostic tests (typically at ambient temperature and line frequency) but rather develop at higher temperatures or closer to the operational limits of the objects. The basis for DFR measurements, the tan delta or power factor value, is primarily a function of insulation system geometry, aging byproducts, moisture, possible liquid insulation conductivity, frequency, and temperature. Using knowledge of this relationship, assessment can be made in the frequency domain rather than in the much more difficult to handle temperature domain.

Features of   Insulation diagnostic analyser IDAX 322

  • State-of-the-art high voltage Dielectric Frequency Response (DFR) instrument tailored for field testing of power transformers, bushings and many other test objects.
  • Instrument and accessories designed for the most demanding field conditions.
  • 2 kV peak and 50 mA capacity – ideal for low capacitance objects such as bushings and instrument transformers.
  • Best hardware and specifications for most accurate results.
  • Easy to use software with assessment guidance by standards and 25+ years of field experience with DFR technology.

IDAX322 ordering information

Insulation diagnostic analysers Model IDAX322  Part No: AG-29090 included accessories

USB cable, A & B type, 2 m (5 ft) GA-30030
Earth/ground cable, 6 mm2, 5 m (15 ft) GC-30060
Generator cable, 18 m (60 ft) GC-30350
Measure red lead, 21 m (70 ft) 25572H-1
Measure blue lead, 21 m (70 ft) 25572H-2
Fixed interlock AF-90010
Test lead soft backpack GD-30225
USB memory stick, 16 GB GC-30334
Windows software, IDAX 5.1 AG-8100X
User’s manual IDAX 322 ZP-AG03E
Mains cable

Brochure for Insulation Diagnostic Analyzers-Dielectric response analyser-IDAX322 Download
