Micro-Ohmmeters -Low resistance ohmmeters-Contact resistance test sets

Measuring low resistance is essential in identifying faulty components to prevent overheating, energy loss and malfunctions during a power surge. Adiradh Energy offers range of highly accurate, easy-to-operate low resistance ohmmeters -Micro ohmmeters-Contact resistance test sets that can measure resistance with resolution as fine as 0.1 micro-ohm.

MOM Series

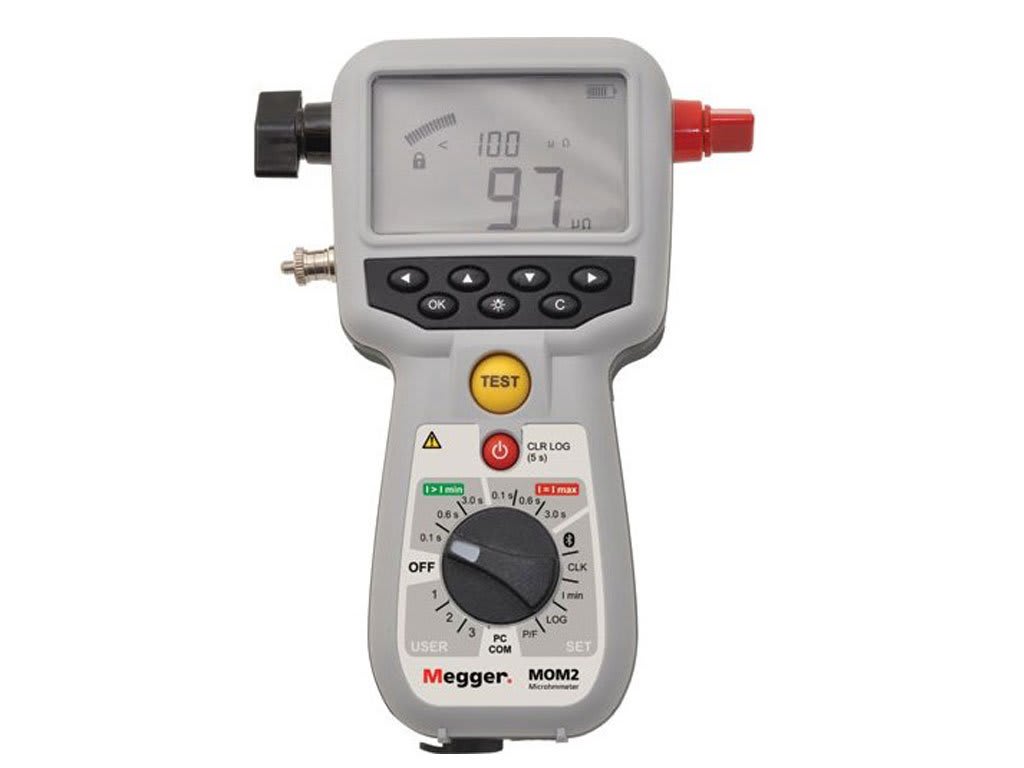

Handheld Micro-ohmmeter MOM2 – 220A

MOM2 is designed to measure the resistance of circuit breaker contacts, bus-bar joints and other high-current links. MOM2 uses an ultra capacitor to generate the high output current. The ultra capacitor is able to store a huge amount of energy compared to conventional capacitors and can deliver very high current during the discharge thanks to its very low internal resistance. The microhmmeter can be used anywhere to measure a low resistance value with high accuracy.

MOM2 - 220A

HANDHELD MICRO-OHMMETER-MOM2 – 220A

Brochure for MOM2 – 220A Handheld Micro-ohmmeter

Download

MOM200A – 200 A MICRO-OHMMETER

MOM200A is designed to check and measure contact resistances in highvoltage circuit breakers, disconnecting switches (isolators) and busbar joints. This unit is an excellent choice when 200 amperes or less are needed for measurement.

MICRO-OHMMETER

MOM200A – 200 A MICRO-OHMMETER

Brochure for Micro-OhmmeterMOM200A

Download

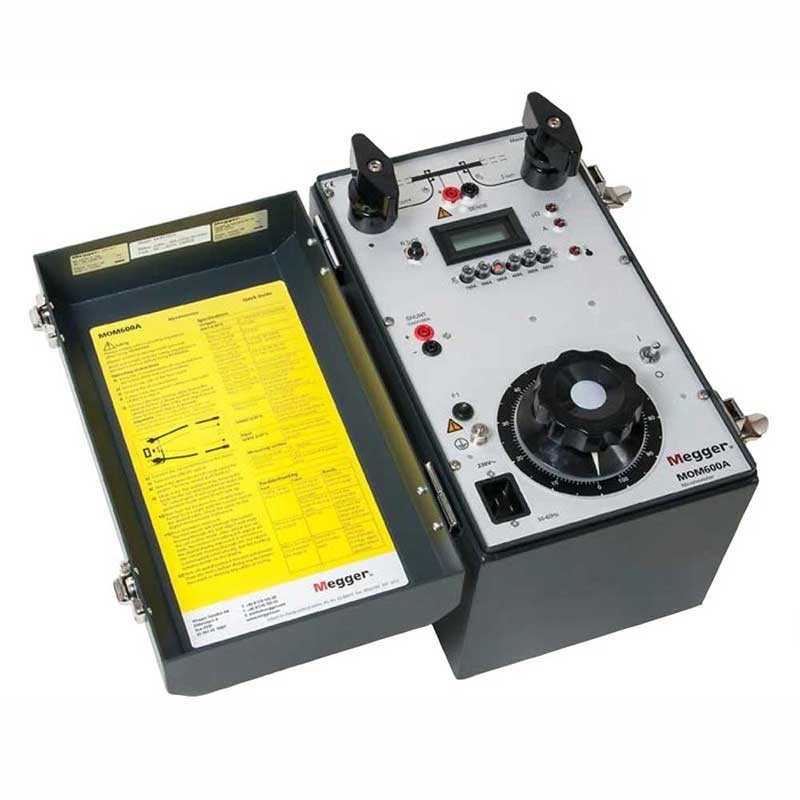

MOM600A – 600 A MICRO-OHMMETER

The risk of overheating is becoming more serious due to the fact that today’s distribution networks have to carry heavier loads. Checking contact resistances at regular intervals detects faults before they cause overheating. Microhmmeters are used to measure contact resistances in highvoltage breakers, disconnecting switches (isolators), knife-contact fuses, bus joints, line joints etc.

 MICRO-OHMMETER

MOM600A – 600 A MICRO-OHMMETER MOM600A

Brochure for Micro-OhmmeterMOM600A

Download

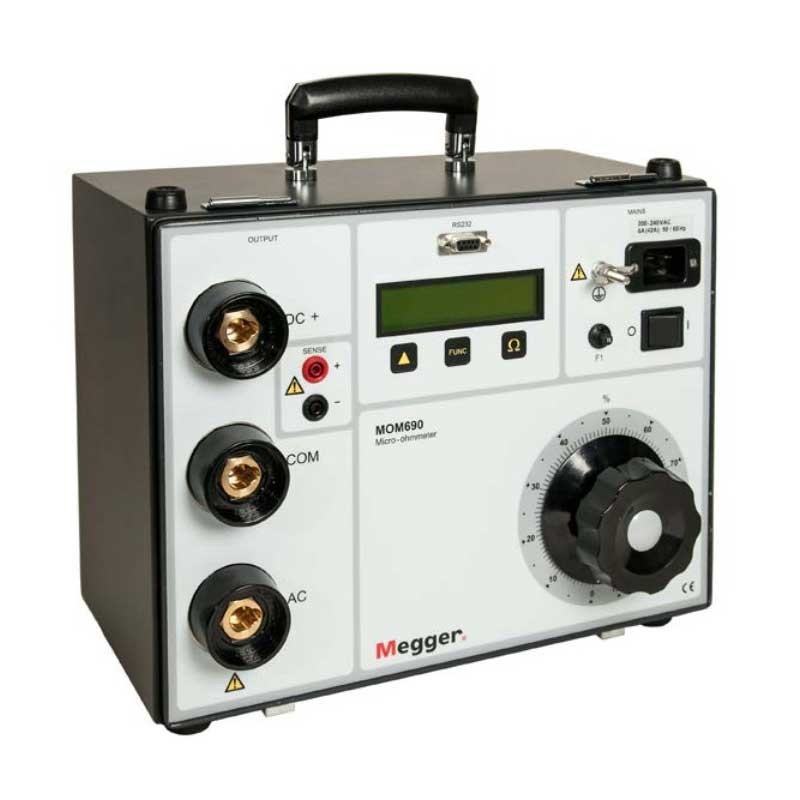

MICRO-OHMMETER MOM690

MOM690 supplements our family of microhmmeters. In addition to high current capacity, MOM690 features microprocessor-based measurement, storage and reporting. The built-in software enables you to carry out an individual test or an entire series of tests and store the results. With the optional MOMWin  software you can also export the test results to a PC for further analysis and reporting. Ranges are set automatically, resistances are measured continually and test results can be automatically captured at a preset test current.

MOM690

MICRO-OHMMETER-MOM690

Brochure for Micro-Ohmmeter  MOM690

Download

DLRO Series

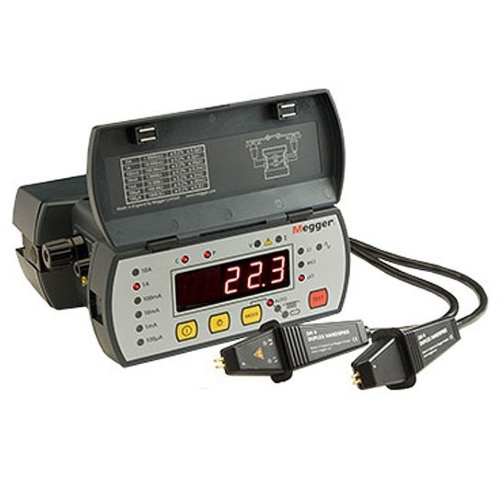

DLRO10-10 A Low resistance Ohmmeters-Digital Microhmmeter-Contact resistance tester

Adiradh offering MEGGER DLRO10 bring new standards to low resistance measurement. A fully automatic instrument, selecting the most suitable test current, up to 10 A dc to measure resistance from 0.1 µΩ to 2000 Ω on one of seven ranges. The DLRO10 is built into a strong, lightweight case that is equally at home in the field or in the laboratory. Light enough to be worn around the neck, they are small enough to be taken into areas which were previously too small to access. DLRO10 uses a large, bright 4-1/2-digit LED display. Megger DLRO10 Handheld Ohmmeter, offering 2000 Ω Max, 100nΩ Resolution, Low Resistance.DLRO-10 Digital Low Resistance Ohmmeter brings new standards to low resistance measurement. It’s fully automatic instruments, selecting the most suitable test current, up to 10 A DC to measure resistance from 0.1 μΩ to 2000 Ω on one of seven ranges.

Manufacturer’s Part Number of DLRO10: 1006-598
MICRO-OHMMETER

10 A LOW RESISTANCE OHMMETERS-DLRO10

  • Accurate results in under three seconds
  • Auto current reversal cancels standing emfs
  • Fuse protected to 600 V
  • NiMH battery reduces weight
  • Automatically detects continuity in potential and current connections
  • Visible warning of high voltages present at the terminals and also for current flowing in the test sample
  • Multiple operating modes including fully automatic
  • Interchangeable test lead terminations

Applications of Megger DLRO10

• Switch and contact breakers

• Aviation industry

• Welded joint inspection



DLRO10X-10 A Low resistance Ohmmeters-Contact resistance test sets

Adiradh offering MEGGER   DLRO10X bring new standards to low resistance measurement. It is a fully automatic instrument, selecting the most suitable test current, up to 10 A dc to measure resistance from 0.1 µΩ to 2000 Ω on one of seven ranges. For users who desire more control over the measurement process, DLRO 10X uses a menu system controlled by a two-axis paddle to allow manual selection of the test current. DLRO10X also adds real-time download of results and on-board storage for later download to a PC.Megger DLRO10X  is Handheld Ohmmeter, 2000 Ω Max, 100nΩ Resolution, Low Resistance. Measure electrical resistance smoothly with this digital ohmmeter from Megger. Simply wire it to your circuit and push the test button to take readings between 0.1μΩ and 2000Ω with an accuracy of +0.2% in continuous or inductive testing modes. The built-in memory lets you save up to 700 measurements, as well as memos with a maximum of 200 characters. A large colour display makes readings easy to see. Thanks to the unit’s broad operating temperature range between -10°C and +50°C, it holds its own in harsh work environments.

DLRO10X

10 A MICRO-OHMMETER WITH TEST STORAGE AND DOWNLOADING-DLRO10X

  • Accurate results in under three seconds
  • Auto current reversal cancels standing emfs
  • Fuse protected to 600 V
  • NiMH battery reduces weight
  • 250 mW power limit (with optional override) to avoid heating the test sample
  • Automatically detects continuity in potential and current connections
  • Visible warning of high voltages present at the terminals
  • Visible warning of current flowing in the test sample
  • Multiple operating modes including fully automatic
  • Alpha-numeric keypad for entering test notes
  • Users-selectable high and low limits
  • Autoranging with manual option
  • Printer output and memory
  • New interchangeable test lead terminations
DLRO10X + LEADSET Part No:  1006-600

Applications of Megger DLRO10X

• Switch and contact breakers

• Aviation industry

• Welded joint inspection

Brochure for Digital Microhmmeter DLRO10-DLRO10X

Download

10 A Micro-Ohmmeter With Dual Power Diagnostics DLRO10HD-Contact resistance test sets

 The heavy duty Megger Ducter DLRO10HD low resistance ohmmeter combines rugged construction with accuracy and ease of use. It features an internal rechargeable battery and can also operate from a mains supply, even if the battery is completely flat.

Brochure for  10 A Micro-Ohmmeter DLRO10HD

Download

10A Microohmmeter with results storage and downloading DLRP10HDX-Contact resistance test sets

Megger’s Ducter range of 10 A micro-ohmmeters, the DLRO10HDX combines ultimate simplicity of operation with a rugged IP65 case designed for stable ground and bench operation and provides memory storage.

Brochure for  10 A Micro-Ohmmeter DLRO10HDX

Download

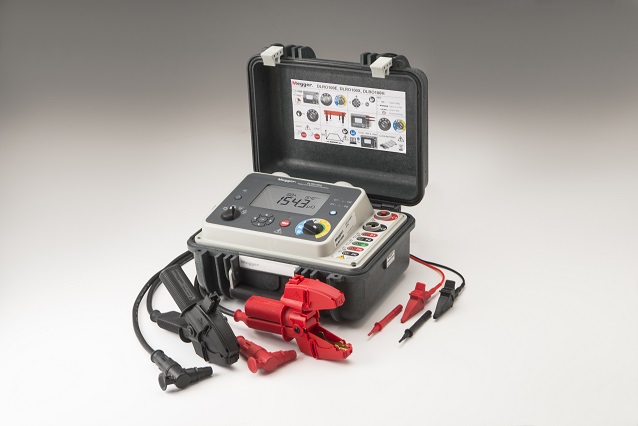

Micro-ohmmeter 100A with dual ground safety-DLRO100E, DLRO100X and DLRO100H

Megger Ducter DLRO100 enables low resistance measurement, across multiple applications, in areas without access to mains power. The integral Li-ion battery supplies a constant 100 A current for up to 200 automatic or manual tests enhancing productivity in remote locations. With a focus on user safety, advanced design features ensure the safe operation of the instrument in the most adverse conditions, including a CAT IV 600 V safety rating in accordance with IEC61010. A DualGround feature is available on the DLRO100X and DLRO100H, which adds to the operators’ safety by grounding both sides ofthe breaker under test.

DLRO100E, DLRO100X and DLRO100H

Micro-Ohmmeters DLRO100E, DLRO100X and DLRO100H

Brochure for  Micro-ohmmeter DLRO100E, DLRO100X and DLRO100H

Download

MICRO-OHMETER -200A-DLRO200

Megger Ducter™ DLRO200 measures resistances between 0.1 µΩ and 1 Ω, at high currents.This versatile instrument can provide test currents from 10 amps up to 200 amps subject to the load resistance and supply voltage. A large LCD displays all all test parameters and measurement results.

Digital Microhmmeter

Digital Microhmmeter-DLRO200

Brochure for Digital Micro-OhmmeterDLRO200

Download

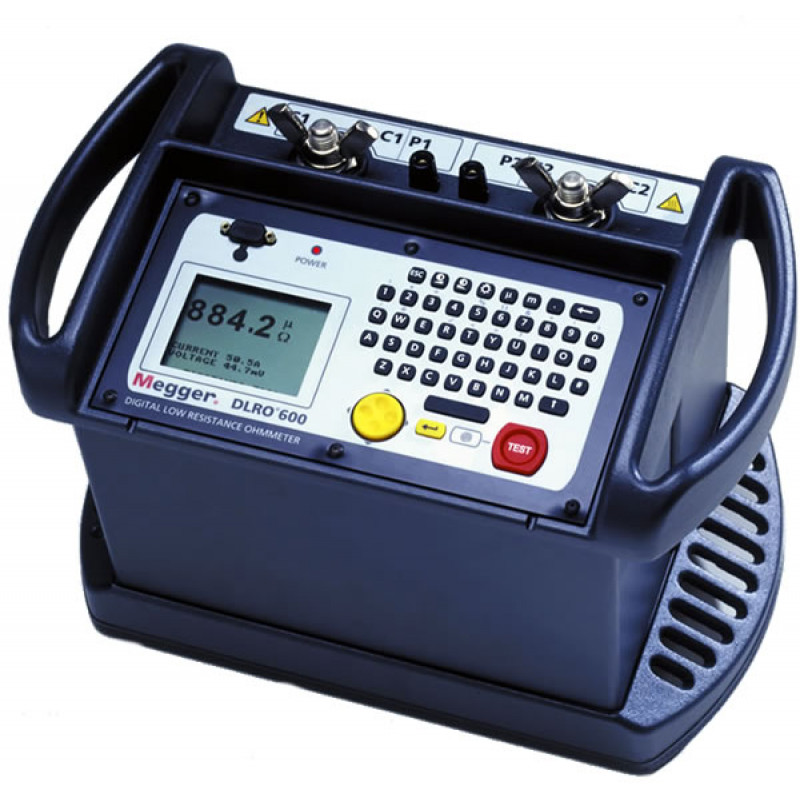

600 A MICRO-OHMETER-DLRO600

Megger Ducte DLRO600 measures resistances between 0.1 µohms and 1 ohms, at high currents.This versatile instrument can provide test currents from 10 amps up to 600 amps subject to the load resistance and supply voltage. A large liquid crystal display provides all the information needed to perform a test; all test parameters and measurement results are displayed.The unique design allows the weight and size of DLRO600 to be kept to a minimum; the instrument weighs less than 5kg. This small size makes DLRO600 equally at home in the workshop, on the production floor or in the field. The high current capability and compact design make DLRO600 suitable for testing circuit breaker contacts, switch contacts, busbar joints or other applications where high current is needed.

Microhmmeter

Digital Microhmmeter-DLRO600

Brochure for Digital Micro-OhmmeterDLRO600

Download

MJÖLNER Series

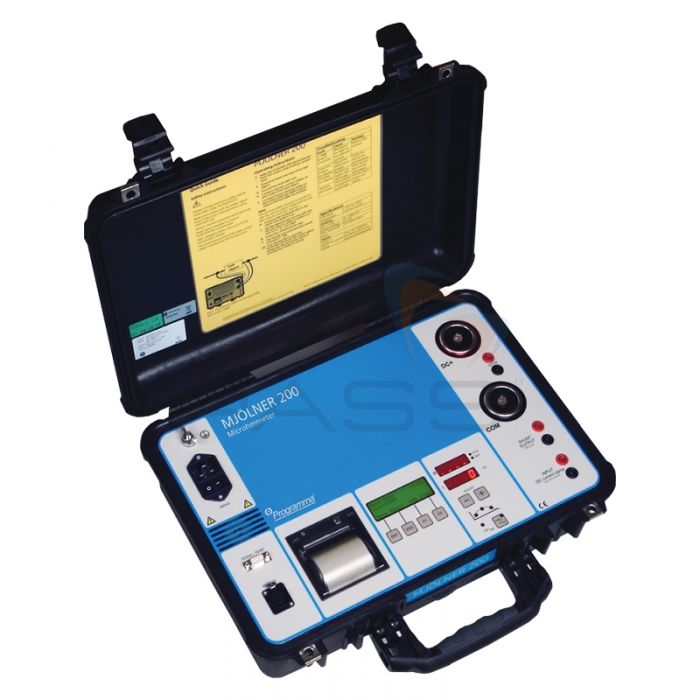

Micro-ohmmeter MJÖLNER200-MJÖLNER600 with dual ground safety

MJÖLNER Series is designed to measure the resistance of circuit breaker contacts, bus-bar joints, contact elements in bus-bars and other high-current links. This product has been designed with safety, ease of use and versatility in mind. It can be used anywhere to measure a low resistance value with high accuracy. It conducts true DC ripple free current testing of bus bars, circuit breakers, fuses, etc.

600 A MICRO-OHMMETER

MJÖLNER600 600 A MICRO-OHMMETER

Brochure for Micro-Ohmmeter MJÖLNER200

Download

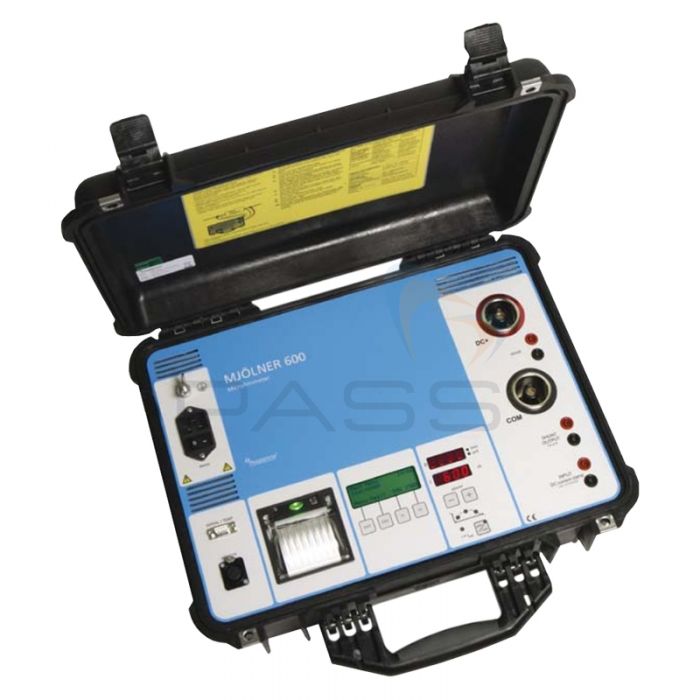

MJÖLNER600-600 A MICRO-OHMMETER

Brochure for Micro-Ohmmeter MJÖLNER600

Download
