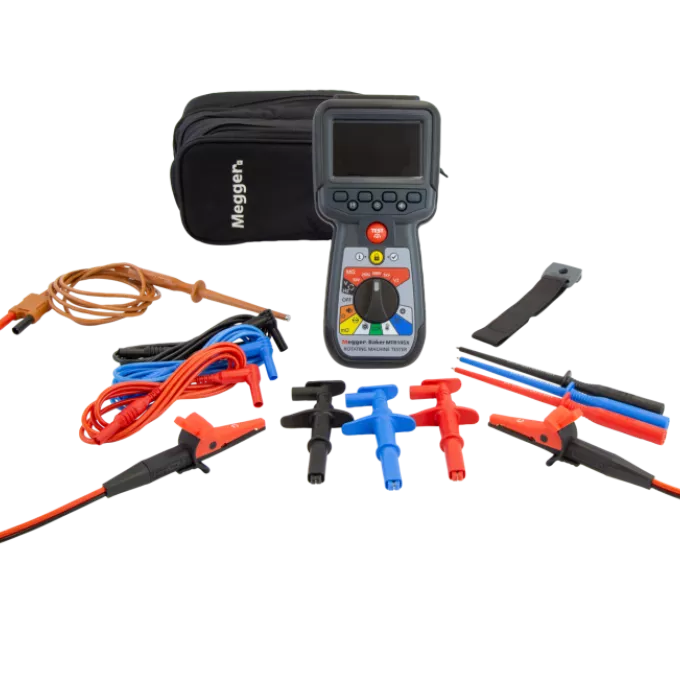

Adiradh offers the Megger MTR105 Rotating Machine Tester for testing motors, generators, and other rotating machines. Moreover, it combines several key tests in one portable instrument. The MTR105 performs insulation resistance, low resistance, continuity, capacitance, inductance, temperature, and rotation tests. Therefore, users can perform many routine checks with one tester. In addition, it supports three-phase insulation resistance testing and temperature compensation for insulation results.
The MTR105 also checks motor direction and three-phase supply rotation. Furthermore, its four-wire Kelvin test helps measure low resistance in windings, joints, and connections. The tester has a full-colour graphic display and can store up to 256 motor test results with date and time. Thus, users can keep test records for later review. In addition, its IP54 protection and strong over-moulded case support use in industrial work areas.
The Megger MTR105 is a rotating machine tester for motors and other electrical machines. It combines insulation resistance, low resistance, inductance, capacitance, temperature, and rotation tests. Therefore, users can carry out several motor checks with one handheld tester. Moreover, its insulation test functions include Polarisation Index (PI), Dielectric Absorption Ratio (DAR), timed tests, and temperature compensation.
In addition, the MTR105 uses a four-wire Kelvin method for low resistance tests. It also checks motor direction and three-phase supply rotation before equipment is energised. Furthermore, the tester detects live voltage and can stop a test when unsafe voltage is found. User-selectable terminal lockout levels provide an additional safety check. Finally, the MTR105 has CAT III 600 V and IP54 ratings, making it suitable for motor service, commissioning, and maintenance work.
The MTR105 brings several tests for rotating machines into one instrument. First, its insulation resistance test supports PI, DAR, timed tests, and temperature compensation. In addition, four-wire Kelvin testing measures low resistance in windings, joints, and connections. Moreover, inductance and capacitance tests provide useful checks on motor coils and windings. The tester also provides continuity and diode tests.
For motor work, the MTR105 checks motor direction and three-phase supply rotation. Furthermore, it measures temperature and can use this value to compensate insulation resistance results. In addition, the tester has removable test leads for different test tasks. Its full-colour display shows test values in a clear format. Moreover, the internal memory can store up to 256 motor test results. Each result can include date and time information. Therefore, the MTR105 supports regular testing and motor maintenance records.
Datasheet for Rotating machine tester MTR105
User manual for Rotating machine tester MTR105
The MTR105 combines several test methods in one portable unit. First, insulation resistance testing provides PI, DAR, timed tests, and temperature compensation. Next, four-wire Kelvin technology helps reduce the effect of test lead resistance during low resistance tests. In addition, inductance and capacitance tests provide more checks on motor windings. Therefore, technicians can perform several tests during the same service visit.
The tester also uses live-voltage detection to help prevent testing when unsafe voltage is present. Moreover, IP54 protection helps support use in industrial work areas. The internal memory can store up to 256 motor test results. Furthermore, date and time data help keep test records in order. USB data transfer also makes it easier to move results for reporting and record keeping. As a result, the MTR105 supports repeat testing, clear records, and efficient motor maintenance.
Adiradh Energy offers Rotating machine tester MTR105 in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur; Durgapur; Kharagpur; Raigarh; Bhilai; Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities
