Product Details

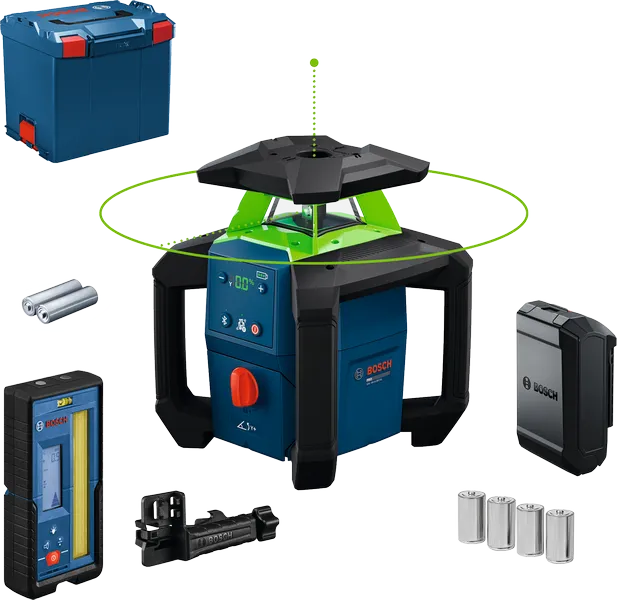

Rotation Laser PRO GRL18V-4-34CVG

Adiradh offers the Bosch PRO GRL18V-4-34CVG Rotation Laser for accurate horizontal and vertical levelling work. Moreover, the laser provides a working diameter of up to 400 m with a compatible receiver. Therefore, it suits large construction and layout tasks. In addition, the green laser creates a clear 360° reference line. The unit provides horizontal accuracy of ±1.5 mm at 30 m and vertical accuracy of ±3.0 mm at 30 m. Furthermore, its automatic self-levelling range reaches ±15% or ±8.5°. Also, users can select 150, 300, or 600 rpm rotation speed. The GRL18V-4-34CVG works with an 18 V lithium-ion battery or four LR14 C batteries. Consequently, users can choose a suitable power source for the job. Moreover, IP66 protection helps guard the tool against dust and water. Thus, this Bosch rotation laser supports levelling, alignment, and layout work on construction sites.

Overview

The Bosch PRO GRL18V-4-34CVG is a green-beam rotation laser for horizontal and vertical levelling. Moreover, it combines automatic self-levelling with 360° laser projection. Therefore, it provides a clear reference for layout work. With the compatible LR 45 receiver, the laser reaches a working diameter of up to 400 m. In addition, it provides horizontal accuracy of ±1.5 mm at 30 m and vertical accuracy of ±3.0 mm at 30 m. Furthermore, the self-levelling range reaches ±15%, or ±8.5°. Users can also choose 150, 300, or 600 rpm rotation speed. The laser uses a 500–540 nm diode with less than 1 mW output and Laser Class 2. Moreover, IP66 protection helps protect the tool from dust and water. The unit also has two 5/8-inch tripod threads. Consequently, users can mount it on suitable tripods for site work.

About Product

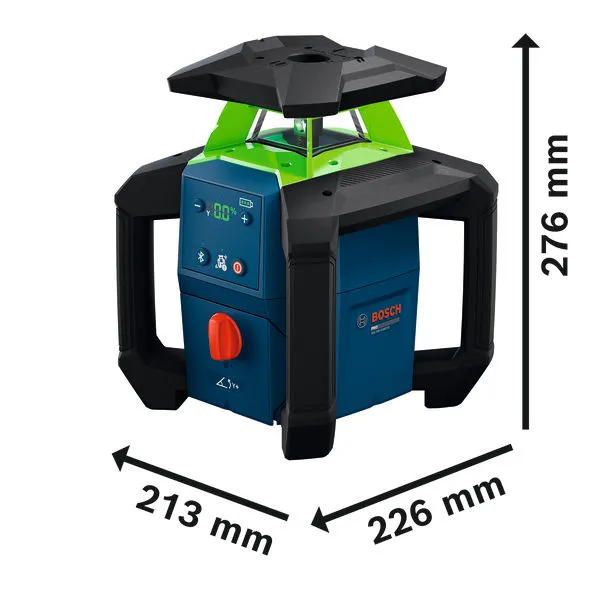

The Bosch PRO GRL18V-4-34CVG Rotation Laser uses a green laser diode with a 500–540 nm wavelength and less than 1 mW output. Moreover, it uses Laser Class 2 technology. The system creates a 360° laser line and green plumb points for layout and alignment work. Furthermore, its automatic self-levelling system works within ±15%, or ±8.5°. Therefore, the tool can set a level reference when the setup stays within this range. Users can select 150, 300, or 600 rotations per minute. In addition, the unit supports the Bosch LR 45 receiver and has two 5/8-inch tripod threads. The GRL18V-4-34CVG runs on an 18 V lithium-ion battery or four 1.5 V LR14 C batteries. Also, it operates from -10°C to 50°C. The tool weighs about 3.1 kg. Its package measures approximately 360 × 440 × 390 mm. Thus, the laser combines automatic levelling, green laser projection, receiver support, and flexible power options.

Datasheet for PRO GRL18V-4-34CVG

User manual for PRO GRL18V-4-34CVG

Technology & Benefits

The GRL18V-4-34CVG combines rotary laser technology with automatic self-levelling for horizontal and vertical reference work. Moreover, its green 360° laser line gives users a clear reference across the work area. With the LR 45 receiver, the system supports a working diameter of up to 400 m. Therefore, it can support large construction areas. In addition, users can select 150, 300, or 600 rpm to suit different work needs. The tilt function also supports slope-related alignment tasks. Furthermore, the ±15% self-levelling range helps the tool create a level reference within its rated range. IP66 protection helps the unit handle dust and water exposure on work sites. Also, the 18 V lithium-ion battery option works with the Bosch 18 V battery platform. Users can instead use four LR14 C batteries when required. Consequently, the tool offers flexible power options for field work. Thus, its laser projection, self-levelling, rotation control, and receiver support make it suitable for construction layout and alignment tasks.

Key Features

• 400 m working diameter with LR 45 receiver
• ±1.5 mm at 30 m horizontal accuracy
• ±3.0 mm at 30 m vertical accuracy
• ±15% or ±8.5° self-levelling range
• Green 500–540 nm laser diode
• Laser Class 2
• 360° laser line
• Green plumb points
• 150, 300, and 600 rpm rotation speeds
• Tilt function
• IP66 dust and water protection
• 18 V lithium-ion battery operation
• Four 1.5 V LR14 C battery option
• Two 5/8-inch tripod threads
• Compatible with Bosch LR 45 receiver
• Approximate weight of 3.1 kg
• Operating temperature from -10°C to 50°C

Applications

• Construction site levelling
• Horizontal alignment
• Vertical alignment
• Building layout
• Foundation layout
• Structural layout
• Site grading
• Slope alignment
• Large-area levelling
• Interior construction work
• Outdoor construction work
• Reference-line setup

Advantages

• Provides a clear 360° green laser line
• Moreover, supports large work areas with the LR 45 receiver
• Provides automatic self-levelling within the rated range
• Furthermore, offers three rotation speed settings
• Supports both horizontal and vertical levelling
• Also, provides a tilt function for slope work
• IP66 protection supports use in demanding site conditions
• Offers 18 V Li-ion and C-cell battery options
• Supports Bosch LR 45 receiver use
• Provides two 5/8-inch tripod threads
