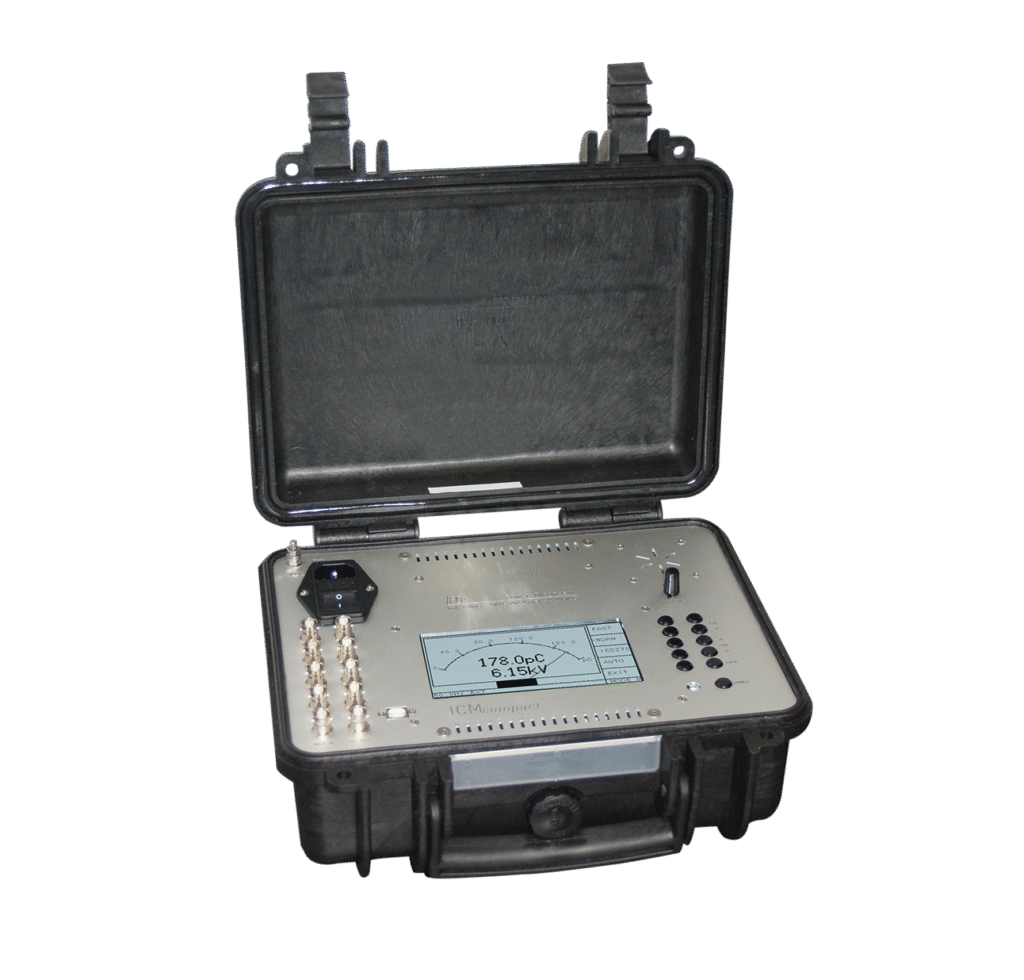

ICMcompact – Standalone Partial Discharge Detector

Adiradh offers ICMcompact – standalone partial discharge detector for accurate condition evaluation of medium and high voltage insulation. Moreover, the instrument supports quality assurance and quality control tasks across factory and field use. In addition, it serves factory acceptance tests, end-of-line testing, and post-repair verification. Furthermore, the compact design enables fast setup at test bays and substations. Therefore, users can perform PD measurements without complex system integration. Also, the digital architecture delivers stable and repeatable results. Consequently, engineers can compare data across tests with confidence. However, PD diagnostics require clear visual feedback. Thus, the ICMcompact provides simple display modes for fast interpretation. Moreover, the unit operates as an autonomous detector. As a result, it supports direct on-site testing. Finally, optional computer connection extends functionality for remote control and data capture, ensuring flexible PD analysis for MV and HV assets.

Overview

The ICMcompact is a standalone digital partial discharge detector designed for MV and HV insulation testing. Moreover, it supports routine and advanced PD measurements in factory and field environments. In addition, the device targets a wide range of electrical assets used in power networks. Furthermore, the system uses a simple push-button interface with on-screen menus. Therefore, operators can configure tests quickly. Also, the embedded LCD panel presents multiple PD display modes. Consequently, users can observe charge levels, phase-resolved patterns, and time-based pulses. However, some tests require extended analysis. Thus, the ICMcompact connects to a computer running Power Diagnostix software. Moreover, this connection allows screenshot capture and remote operation. As a result, documentation and reporting become easier. Finally, the modular design supports optional functions, enabling adaptation to different PD measurement tasks.

About ICMcompact – standalone partial discharge detector

The ICMcompact is a digital partial discharge detector for MV and HV insulation systems. Moreover, it measures apparent charge and phase-resolved PD activity with high accuracy. In addition, the instrument supports PRPD analysis for defect classification. Furthermore, it displays phase-summed charge pulses with applied voltage in a scope-style view. Therefore, users can correlate PD activity with voltage stress. Also, the system supports spectrum analysis and analogue gating. Consequently, noise separation improves during testing. However, cable diagnostics require time-domain analysis. Thus, the optional DSO function enables PD fault location in cables. Moreover, the instrument supports RIV and HVM measurements. As a result, it covers multiple test needs in one platform. Finally, auxiliary inputs allow recording of external parameters such as power and temperature for advanced diagnostics.

Datasheet for ICMcompact – Standalone Partial Discharge Detector

Broacher for ICMcompact – Standalone Partial Discharge Detector

Technology & Benefits

The ICMcompact uses digital signal processing for precise partial discharge detection. Moreover, stable sampling improves repeatability of results. In addition, PRPD technology supports clear defect pattern recognition. Therefore, users can identify insulation issues effectively. Also, spectrum analysis helps distinguish PD from interference. Consequently, measurement reliability increases. Furthermore, analogue gating allows selective signal suppression. Thus, users achieve cleaner PD patterns. However, test environments vary. Therefore, the system offers LAN and fibre optic communication for secure data transfer. Moreover, battery operation supports cordless testing for up to three hours. As a result, field flexibility improves. Finally, rugged housing options protect the instrument during outdoor operation, ensuring dependable performance under demanding test conditions.

Broacher for PDIX_Accessories

Key Features

• Standalone digital partial discharge detector

• MV and HV insulation condition evaluation

• Push-button interface with embedded LCD

• PD charge meter with adjustable sensitivity

• Phase-resolved PD pattern display

• Scope-style voltage and charge display

• Spectrum analysis and analogue gating

• PD fault location with DSO option

• RIV and HVM measurement support

• LAN and fibre optic communication

• Battery-operated option with cordless use

Applications

• Factory acceptance testing of MV and HV assets

• End-of-line testing in manufacturing

• Post-repair insulation verification

• Distribution and instrument transformers

• MV and HV cable diagnostics

• Electronic component testing

Advantages

• Autonomous operation without external systems

• Clear PD visualisation for fast interpretation

• Flexible configuration with optional functions

• Suitable for factory and field environments

• Supports multiple asset types

• Rugged housing options for outdoor use

Related Products

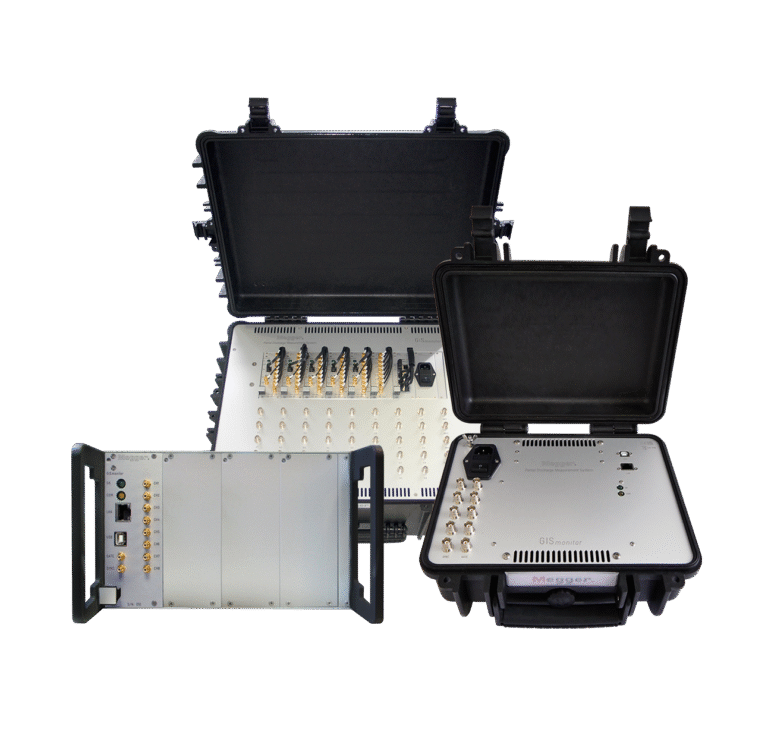

GISmonitor Portable – Portable Partial Discharge Monitor
