Static electric motor analysers-Baker DX Series-Baker AWA-IV Series

Static  electric motor analysers are used on off-line motors and generators to test motor circuit and insulation condition. Adiradh Energy offers  Static motor analyzers Baker DX ,Baker AWA-IV,Baker PPX Power  packs ,Rotating Machine tester MTR 105

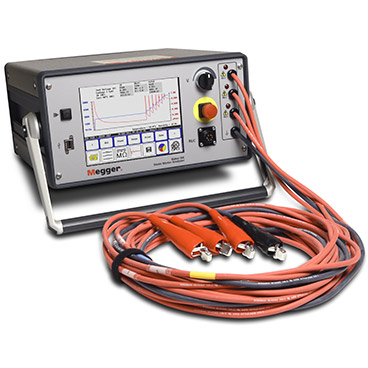

Static Motor Analyzer Baker DX Series

Adiradh Energy offers  Static motor analyser DX Series provides the industry’s most comprehensive set of tests to analyze a motor’s entire insulation system. Portable, powerful, and configurable to meet the specific needs of motor shops, industrial maintenance teams and motor OEMs and others.Baker DX series analyzers detect every common electrical problem with industrial motors. In both random and form wound coils and windings, a Baker DX can identify incorrect numbers of turns, wire gauges or wire material. It also detects open, reversed or unbalanced coils.DX Series analyzers find early indications of insulation weakness and faults in windings, between phases, coil-to-coil and in groundwall insulation. They can identify if contamination by chemicals, moisture, dust or dirt is impacting insulation strength. Additionally, they detect problems with motor connections such as feed cable insulation weaknesses, imbalances, opens or high resistances.DX Series offers models :4 and 6KV,6KV HV,12KV,12KVHO,15V

Baker AWA-IV STATIC MOTOR ANALYSER

STATIC MOTOR ANALYSER Baker AWA-IV

The industry-leading, standards-compliant range of tests includes:

  • Winding resistance
  • Inductance
  • Capacitance
  • Impedance
  • Phase angle and D/Q
  • Insulation resistance
  • Dielectric absorption (DA)
  • Polarization index (PI)
  • Step voltage
  • DC hipot
  • Surge
  • Surge PD (partial discharge)
  • Rotor influence check (RIC)

 Baker DX  features:

  • 4 to 40kV max test voltages to perform tests on a full spectrum of motor and coils (fractional horsepower motors up to multi-megawatt generators)
  • High- and low-voltage test capability in a single instrument to test motor circuit and insulation systems
  • Intuitive graphical user interface with large, glove-friendly touch screen
  • USB printer and flash drive interface for easy report printing and data transfer
  • Coil mode enables rapid testing of coils and storage of all data

Partial discharge

High voltage equipment can suffer from partial electrostatic discharge, where localized corona or breakdown discharge can damage insulation, leading to progressive degradation and eventual circuit breakdown.Winding insulation defects of this type can be found early with the optional Baker DX Surge PD capability, which captures inception, repetitive inception, repetitive extinction and extinction voltages of partial discharge (PD) in accordance with the IEC 61934 standard. PD waveforms and data are included in reports generated by the Baker DX and the Surveyor DX desktop PC software application

DC Motor testing

DC motor testing is quick and accurate using the Baker DX. The tester includes an armature test mode user interface and reporting function. Interpole and field coil test results are specially labelled. Bar-to-bar and span tests can be performed on a DC armature to thoroughly analyze for shorts, open circuits, weak turn-to-turn insulation, unbalances in the coils, and damaged or misconnected commutator risers and equalizers. For the best armature diagnostics, the Baker DX can be used with the Baker ZTX low-impedance test accessory, which enables bar-to-bar testing on most DC armatures. The Baker ZTX lowers the maximum surge test voltage and increases the available surge current for testing very low impedance coils.The Baker DX-15A features integrated ZTX technology built into the instrument.Performing armature tests is easy with the ATF5000 and Baker ZTX low-impedance component test accessorieswww.megger.com                                             51) Requires Winding Resistance option2) Requires Inductance / Capacitance option3) Requires PD (partial discharge) option4) Requires RIC (rotor influence check) option

Baker Surveyor DX Software

Surveyor DX software enables Baker DX operators to use a personal computer to store more test data, generate and view reports across the full spectrum of  Baker DX tests, and share and compare analysis with other maintenance personnel using data from multiple analyzers

DX Series Optional accessories

  • Surveyor DX report generation software (for use on personal computers)
  • Baker PPX 30, 30A and 40 power packs
  • Baker ZTX low-impedance test accessory
  • ATF5000 bar-to-bar armature test fixture
  • Foot switch
  • Extension leads
  • USB compatible printer
  • Durable fabric backpack case
  • Safety lights

Adiradh Energy offers Static electric motor analyser Baker DX Series in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Static electric motor analyser Baker DX Series Download

Brochure for Baker Surveyor DX Download

Brochure for Baker ZTX Low-Impedance Coil Test Accessory Download

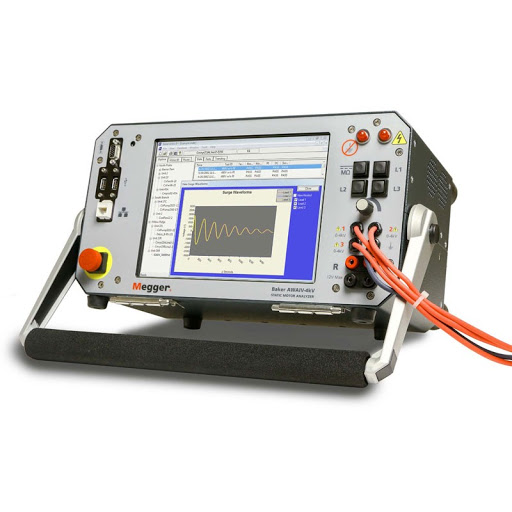

Static Motor Analyser Baker AWA-IV Series

Adiradh Energy offers Baker AWA-IV automatically performs repeatable, user-programmable tests to thoroughly assess the strength of a motor’s insulation and circuit. In fact, it is the only high-voltage test instrument that a user can program to perform a specific set of insulation tests prior to being in the field, and then use as programmed in the field. The AWA-IV is also used to assure quality of motor rebuilds or new production motors before they are placed into service.

Static motor analyser

Static motor analyser-Baker AWA-IV

Baker AWA-IV is a simple-to-use test instrument with an intuitive, touch-screen user interface. It delivers accurate, repeatable results regardless of the skill level of a given operator. It easily detects problems that low-voltage testers cannot find by performing a comprehensive set of both high- and low-voltage tests. Results are presented in simple, easy-to-understand graphs and reports that give motor maintenance professionals the information they need to minimize costs and unplanned downtime. The ability to apply identical tests to a given motor over a long period allows trends to be analysed, revealing the degradation of insulation over the motor’s lifetime. This allows maintenance professionals to predict when a motor may fail, and plan its replacement accordingly.

The AWA-IV offers computer control and waveform monitoring advantages over equivalent manually controlled instruments. The analyser’s embedded computer conducts the tests, stores the results and continuously monitors voltage levels while testing. If the analyser detects a weakness in the insulation during a given test, the test is interrupted, the operator is alerted and all test parameters at the time of the interruption are reported.The AWA-IV’s benefits can be extended to low-impedance coils, such as armatures, through the use of the Baker ZTX low impedance coil accessory. The ZTX, which includes the ATF5000 commutator probe accessory, allows the AWA-IV to apply surge tests to coils which require higher currents.

Baker AWA-IV family includes models designed to perform tests at maximum voltages from 2 000 up to 12000 volts. Models include 2 kV, 4 kV, 6 kV, 12 kV and 12kV HO (high output). These analyzers can be coupled with Baker Power Packs to boost test voltages to 24 or 30 kV for tests on large motors and generators.Baker AWA-IV series analyzers perform the following tests:

  • Winding resistance
  • Insulation resistance
  • dielectric analysis (DA)
  • Polarization index (PI)
  • DC step-voltage
  • DC continuous ramped
  • DC hipot
  • Surge

Baker AWA-IV features

  • Megohm, PI, DA, DC step-voltage,DC hipot test capabilities
  • USB ports for data transfer and printing with Windows plug-and-play printers
  • Wireless networking capability
  • RJ-45 Ethernet port for wired local-area network connections
  • 12 kV HO (high-output) version for performing surge tests on large motors
  • Power pack compatibility (6kV, 12kV, and 12kV HO versions only)
  • Solid-state disk drives standard
  • Windows 10 operating system
  • IEEE- and IEC-compliant surge test

Adiradh Energy offers Static electric motor analyser Baker AWA-IV Series in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Static Electric Motor Analyzers Baker AWA-IV Series   Download

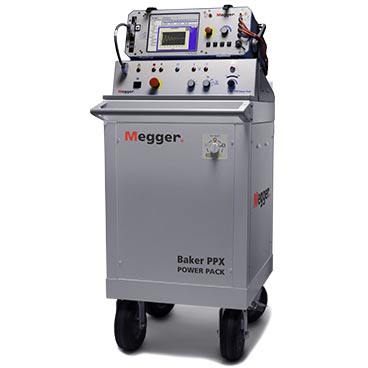

High Voltage Motor Tester- Baker PPX Power Packs

When coupled with Baker static motor analysers (i.e., certain Baker DX and AWA-IV models), the Baker PPX Power Packs extend the insulation testing voltage range.  They help verify the condition of insulation on form-wound coils, high voltage AC motors and large DC motors, and are ideal for use in manufacturing, predictive maintenance, and motor rewind and repair settings.In order to test large, high voltage motors that typically drive the critical processes in industry, higher test voltages and currents than those available in portable motor analysers are required.  Baker Power Packs (when used in concert with a Baker static motor analyser) verify insulation at voltages up to 40 kV, with up to 2600 A of current available.

HIGH VOLTAGE MOTOR TESTER

Baker PPX Power Packs
High voltage motor tester

Overview of  – Baker PPX Power Packs

  • Used to extend insulation testing range of AWA-IV static motor analysers and selected DX analysers
  • Test voltages from 5 kV to 40 kV
  • Available in three models (PPX30, PPX40, PPX30A)
  • Mobile, large-wheeled cabinet for easy transport to the test area
  • AC outlet on cabinet for the host unit (i.e., AWA-IV or DX), as well as lead storage
  • Baker PPX30A includes an internal armature test circuit built in for testing large DC motors. When in armature mode, test voltage is limited to 2100 V and the current available is increased up to 7000 A.
  • Complete range of tests (surge, winding resistance, Megohm (PI, DA), continuous ramp DC step-voltage, and DC hipot tests).

Adiradh Energy offers  Baker PPX Power Packs in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Baker PPX Power Packs Download

Rotating Machine Tester-MTR105

MTR105 is a dedicated Static Motor Tester with Megger’s tried and trusted suite of insulation resistance tests (IR), plus all the great traditional features and reliability of Megger’s testers.The MTR105 takes the test abilities of Megger’s proven IR test instruments adding DLRO four wire Kelvin low resistance test, inductance and capacitance tests to provide a versatile motor tester, all packaged in a robust hand held instrument, which up to now has simply not been available. Additionally the Rotating machine tester  MTR105 incorporates temperature measurement and compensation (for IR tests), motor direction of rotation plus supply phase rotation tests.

Rotating Machine Tester

Rotating Machine Tester-MTR105

Overview of MTR105

  • Full colour graphic display
  • 3 Phase insulation resistance
  • Temperature correction for insulation resistance
  • Guard terminal
  • DLRO four wire Kelvin
  • Continuity and diode test
  • Motor direction of rotation
  • Capacitance and inductance
  • CAT III 600 V up to 3000 m
  • Environmental protection to IP54

Adiradh Energy offers Rotating machine tester MTR105  in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Rotating Machine Tester-MTR105 Download
