Oil breakdown voltage kit OTS100AF

Adiradh offering OTS AF insulating oil test sets are a range of automatic oil test sets that perform accurate breakdown and withstand voltage tests on mineral, ester, and silicone insulating liquids. All models have precision, shatter-proof test vessels that are easy to clean and provide repeatable results, whether they are used in the field or laboratory. Oil BDV tester OTS100AF have a transparent, shielded lid and a large test chamber, giving you easy access to the test vessel and allowing you see what is happening within the test chamber.Test results are identified either by a serial number or asset ID and are time and date stamped. The units come with PowerDB Lite,Megger’s asset and data management software, at no extra cost, giving you an excellent tool for downloading and printing results. They units also have an internal printer, so you can have a hard copy of your results. The instruments also have USB drives for easy transfer of test results and an external USB printer. The AF model also includes a barcode scanner

Oil BDV TesterThe transparent lid also provides ample visibility within the chamber, yet is protected and electrically shielded by a screen with multiple links to instrument ground.All of the current test standards worldwide are pre-loaded in the instrument for convenient automatic operation, however should a new test standard or an existing standard be amended, there are 3 custom tests that can be configured to the new requirements. This enables testing to continue to cover the short period while Megger updates the test procedure files. New updated files are then downloaded by the user and installed into the test instrument via a USB drive.

Features of Oil BDV Tester OTS100AF

• NEW – IEC60156-2018
• NEW – IEC60156-2018 V for Viscous Oils
• NEW – IEC60156-2018 Annex A
• NEW – IEC60156-2018 Annex A (V) for Viscous Oils
• NEW – GBT 507-2002 – Chinese Standard
• NEW – Chinese language on screen
• NEW – Withstand tests
• Full Range to suit all user needs
• Easy adjust – locking electrode gap
• Fast precision breakdown detection
• Ultra-fast HV switch off time
• Suitable for mineral, ester and silicone oils
• Latest IEC standards
• AF 12 variants
• PB 8 variants
• Lightweight from 16.8 kg – OTS PB range 60 kV and 80 kV
• Portable (OTS PB) and Laboratory instruments (OTS AF) range from 60 kV up to 100 kV

Scope of supply for Oil breakdown test kit Megger  OTS100AF

• Oil breakdown test basic unit OTS100AF Part Number : 1014-542
• Vessel 400 ml assembly (stirrer lid fitted)
• Printer Built-in
• Full electrode set – IEC and ASTM
• Electrode gauge set
• IEC and ASTM impeller
• Calibration certificate
• Power DB guide
• Quick Start Guide
• OTS Vessel Preparation Guide

Voltage check unit  VCM100D

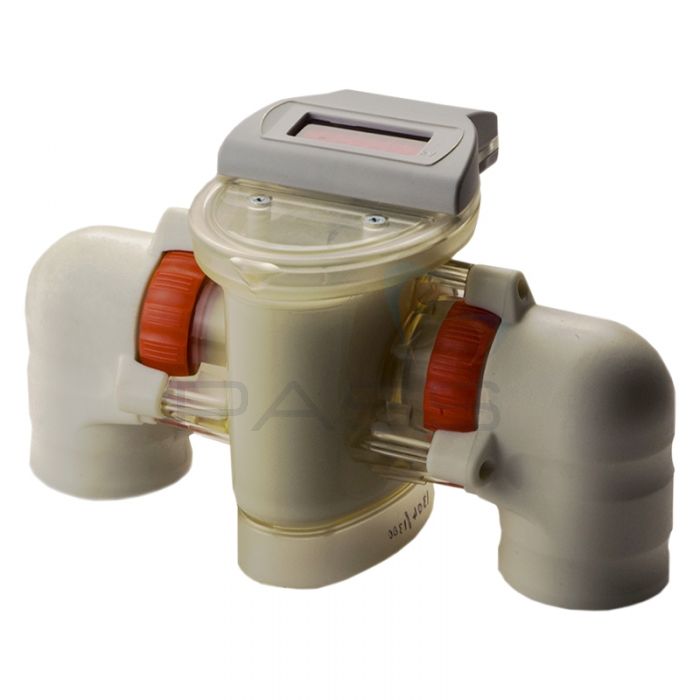

Digital calibration meter is designed for use with Megger’s OTS 100AF  oil test sets in order to ensure that accurate testing results are maintained over a time period.It evaluates the high voltage output to a set of national standards, ensuring correct operation of the oil tester. It is designed to fit directly into the oil testing chamber instead of a vessel and simulates the effects of a normal test (dielectric strength). The Megger VCM100D 100kV Digital Calibration Meter will ramp up from 0 kV to the oil tester’s maximum test voltage, pausing at 10 kV intervals for ten seconds in order to verify that output voltage. The Megger VCM100 100kV Digital Voltage Checker has a range of 0 to 100 kV.

100 kV Digital Voltage Checker for OIL BDV test kit

An indication of detected voltage is shown on the digital display

Brochure for Oil breakdown test kit for Transformer Oils-Transformer Oil BDV Tester

User Guide  for  Transformer Oil breakdown test kit OTS100AF
