Adiradh offers the Versatile Partial Discharge Measurement system ICMsystem for accurate insulation diagnostics in MV and HV assets. Moreover, the system supports precise partial discharge measurement under laboratory and field conditions. Therefore, engineers can evaluate insulation health with confidence. In addition, the modular design allows flexible configuration for different test setups. Also, the ICMsystem integrates easily with existing test environments. Furthermore, it supports both conventional and advanced PD analysis methods. However, the operation remains simple and structured. Consequently, testing time is reduced while data quality improves. As a result, maintenance decisions become more reliable. Thus, utilities and service teams can detect defects early. Moreover, the system supports multiple sensors and coupling devices. In addition, it enables synchronized measurement and clear visualization. Also, the platform supports standardized PD testing procedures. Finally, the ICMsystem ensures repeatable results, therefore supporting long-term asset management and compliance with international testing practices.
The Versatile Partial Discharge Measurement system ICMsystem is designed for comprehensive PD testing across a wide range of electrical equipment. Moreover, it supports offline partial discharge measurements on transformers, cables, switchgear, rotating machines, and components. Therefore, it fits both factory acceptance testing and on-site diagnostics. In addition, the system is scalable, allowing expansion with multiplexers and accessories. Also, it supports phase-resolved partial discharge analysis for detailed pattern recognition. Furthermore, the system offers stable signal acquisition with effective noise separation. However, it remains adaptable to different voltage sources and test circuits. Consequently, users can configure the system for diverse standards and test methods. As a result, measurement consistency is maintained across applications. Thus, the ICMsystem acts as a central platform for PD measurement, analysis, and documentation, supporting long-term insulation condition assessment and quality control processes.
Datasheet for Versatile Partial Discharge Measurement system ICMsystem
Brochure for Versatile Partial Discharge Measurement system ICMsystem

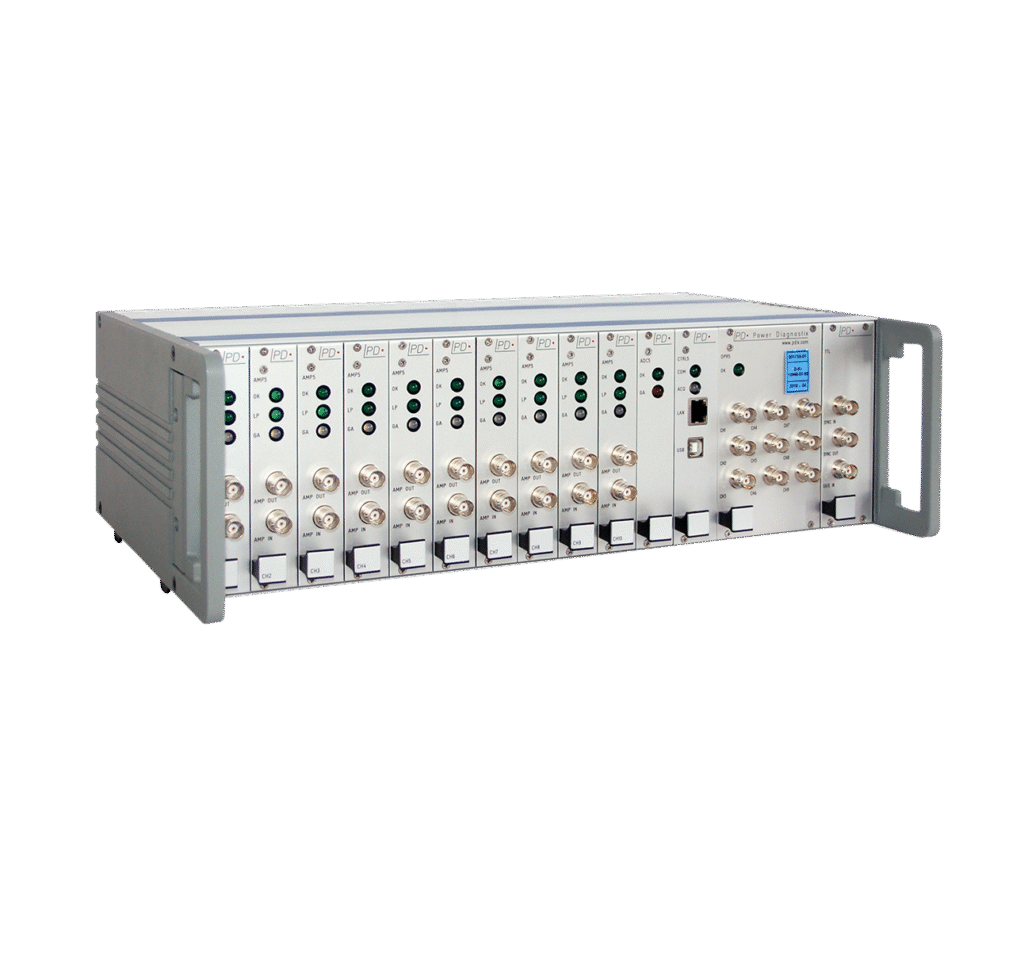

The ICMsystem is a modular partial discharge measurement platform based on digital signal acquisition and standardized PD evaluation methods. Moreover, it includes a central PD detector, coupling capacitors, measuring impedance units, and optional multiplexers. Therefore, it supports IEC 60270 compliant measurements. In addition, the system provides phase-resolved partial discharge (PRPD), pulse sequence analysis, and time-domain signal evaluation. Also, it supports external synchronization with AC and DC test sources. Furthermore, high dynamic range input stages enable accurate charge measurement in pico-coulombs. However, advanced gating and filtering functions reduce electrical noise. Consequently, defect-related signals are clearly identified. As a result, fault type and severity can be assessed. Thus, the ICMsystem enables precise insulation diagnostics using established technical terminology, including apparent charge, phase angle, repetition rate, and pulse amplitude distribution.

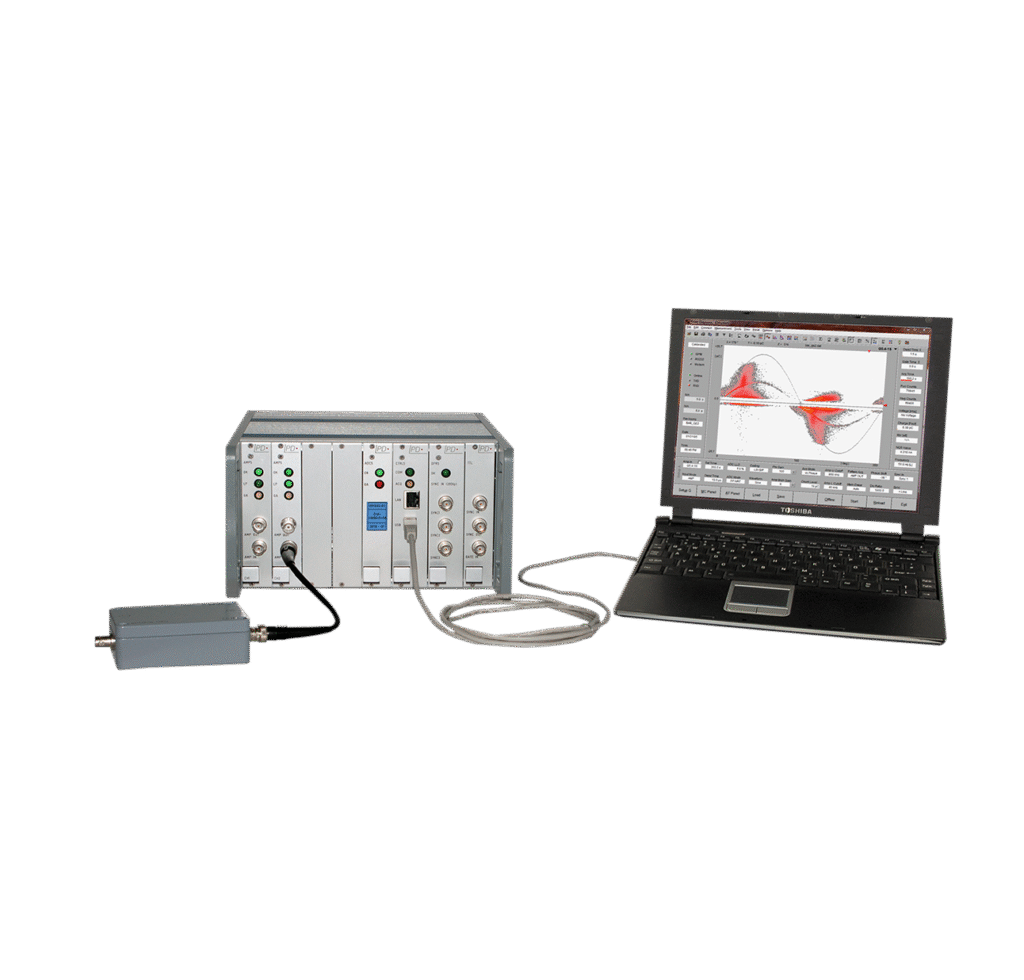

The ICMsystem uses high-speed digital processing to capture and analyze partial discharge pulses accurately. Moreover, synchronized phase reference ensures stable PRPD patterns. Therefore, defect localization and classification become more reliable. In addition, digital filtering and gating improve signal-to-noise ratio. Also, modular hardware allows parallel measurements on multiple channels. Furthermore, software-based visualization supports trend analysis and data comparison. However, the system maintains consistent accuracy across voltage levels. Consequently, repeatable results are achieved in both lab and field conditions. As a result, early detection of insulation defects is possible. Thus, maintenance planning improves and unplanned outages are reduced. Moreover, standardized data output supports reporting and documentation. In addition, the flexible architecture extends system life. Finally, the ICMsystem delivers reliable PD diagnostics while supporting efficient testing workflows and long-term asset condition monitoring.
IEC 60270 compliant partial discharge measurement
Modular and scalable system architecture
Phase-resolved partial discharge analysis (PRPD)
Digital filtering and noise gating functions
Support for AC and DC test synchronization
Multi-channel measurement with multiplexers
Power transformers PD testing
Medium and high voltage cable testing
Switchgear and GIS insulation evaluation
Rotating machine insulation diagnostics
Factory acceptance and routine testing
On-site and laboratory PD measurements
Accurate and repeatable PD measurements
Flexible configuration for diverse assets
Effective noise suppression capabilities
Clear data visualization and analysis
Compliance with international standards
Suitable for long-term condition monitoring
