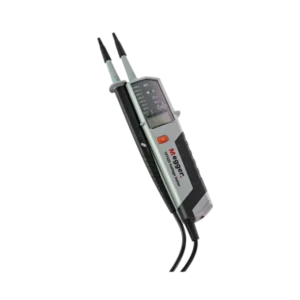

Adiradh offers the Megger TPT420 Voltage Tester for checking AC and DC voltage in electrical installations and other systems. The tester measures AC voltage from 12 V to 1000 V and DC voltage from 12 V to 1500 V. In addition, it provides continuity testing with both visual and audible signals. The TPT420 has LED and LCD displays, so users can view voltage readings clearly. Moreover, it can perform a single-pole voltage test and phase rotation test. An integrated LED torch also helps users work in areas with low light. Furthermore, the tester has CAT IV 1000 V safety rating and IP64 protection. It can also indicate dangerous voltage even when the batteries are exhausted. Therefore, the Megger TPT420 is suitable for electricians, electrical engineers, maintenance teams, and service technicians.
The Megger TPT420 is a two-pole voltage tester designed for quick voltage and continuity checks. It measures AC voltage from 12 V to 1000 V and DC voltage from 12 V to 1500 V. In addition, the tester provides LED voltage levels and a four-digit LCD display. The LED scale covers nominal levels from 12 V to 1000 V, while the LCD provides the measured voltage value. Moreover, the tester supports a continuity range of 0 to 500 kΩ with visual and audible indication. It also provides automatic polarity indication and phase rotation testing. Furthermore, the TPT420 has an IP64-rated housing and a CAT IV 1000 V overvoltage category. As a result, it is suitable for electrical installation checks, maintenance work, and other voltage testing tasks.
Datasheet for Voltage tester TPT420
User manual for Voltage tester TPT420
The Megger TPT420 combines voltage indication, continuity testing, single-pole testing, and phase rotation indication in one handheld instrument. Its LCD measures AC voltage from 12 V to 1000 V and DC voltage up to 1500 V. At the same time, the LED indicators provide quick voltage level information. In addition, the tester gives an audible signal during voltage and continuity tests. The single-pole test supports AC voltage from 100 V to 1000 V at 50/60 Hz. Moreover, the phase rotation function covers 120 V to 400 V phase-to-phase AC at 50/60 Hz. The tester also has an integrated LED torch for work in poorly lit areas. Furthermore, GS38 probe tip shrouds, a protective pouch, and two AAA batteries are supplied with the standard package.
The TPT420 uses both LED and LCD indication to make voltage checks easier to read. The LCD provides a direct voltage value, while the LED scale gives quick voltage level indication. In addition, the tester uses automatic polarity indication for AC and DC tests. Its continuity function provides both light and sound alerts, which helps users identify circuit continuity during testing. Moreover, the tester can indicate voltage without relying on battery power, so it can continue to warn the user about dangerous voltage when the batteries are exhausted. The phase rotation test also helps identify phase sequence in suitable three-phase systems. Furthermore, the integrated LED torch improves visibility in dark work areas. The CAT IV 1000 V rating and IP64 housing add protection for electrical installation work.
Adiradh Energy offers Voltage tester TPT420 in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur; Durgapur; Kharagpur; Raigarh; Bhilai; Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities
