Emergency Restoration System-ERS Towers

Emergency restoration system-ERS towers are Modular, reusable transmission tower systems are so versatile that they can be used  in line crew of national grid, utility companies and associated with others power transmission and distribution companies for various applications such as: Restoring power following a disaster (flood, hurricane, war, etc),Conducting scheduled maintenance work on existing towers without major interruptions, temporary line extensions in a fast & efficient way (no civil engineering work required),Temporarily linking villages or remote locations (mining sites) to the main grid.Generally, when electrical transmission is interrupted because one or several transmission towers are damaged, there is a high economical cost for the Transmission and utility companies.Adiradh Energy offers Lindsey make ERS towers  four models  1070-ERS Series ,800-ERS Series,600H-ERS Series,600L-ERS Series for  in India

 Lindsey Manufacturing Co Emergency Restoration System Towers

ERS towers-Modular, reusable transmission tower systems

ERS Towers Reliability and safety

  • Design and proof tested to IEEE Standard 1070-2006, the only world-wide accepted standard for ERS. Lindsey 1070-series ERS are also fully compliant with the dimensional requirements of this standard.
  • Testing performed in accordance with IEC-60652 “Loading Tests on Overhead Line Structures.”
  • Lindsey is ISO-9001:2008 Certified for Design and Manufacture of ERS

This represents an opportunity for a quick and efficient solution to temporarily replace damaged towers, until the utility company can remove the damaged tower, build a new foundation, transport the new tower to the site and install it. This process can take as little as 1 or 2 weeks (tower in stock, 24h shifts, efficient teams) or as long as 30 to 50 days .By using ERS, the transmission towers can be replaced in just a few hours by creating a by-pass and power transmission can be resumed much faster than with the traditional methods. ERS Towers  can be erected in a few hours and is being used  from 132-kV,220-KV,400-KV to 765-KV  transmission lines across India.

What Standard Should Follow for ERS Structure?

ERS tower structure principally uses in emergency situation. So, product quality considering safety must be as the highest prioritized. Marinating international standard- there is “IEEE Guide for the Design and Testing of Transmission Modular Restoration Structure Components”, including earlier or later versions. Strict conformance of IEEE 1070-2006 includes testing requirements, material requirements, fabrication requirements, and all other geometric and dimensional requirements listed in the IEEE 1070 standard, without exception.  The manufacturer shall submit with his proposal, a certified copy of the Design Test Report as required in Section 4 of IEEE Standard 1070-2006.

Adiradh energy offers Emergency restoration system and ERS Towers for EHV&HV Transmission in India ; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities.

1070-Series ERS towers

Adiradh Energy offering Lindsey 1070-Series ERS  are fully compliant with the design, testing, AND dimensional requirements of IEEE Standard 1070-2006, “Guide for the Design and Testing of Transmission Modular Restoration Structural Components”.Design and Testing Compliant to IEEE Std. 1070 and IEC-60652 and also Dimensionally Compliant to IEEE Std. 1070.Relative buckling strength 150%,All extruded or plate aluminum construction

Brochure for Emergency restoration system-ERS towers – 1070-Series ERS Download

800-Series ERS towers

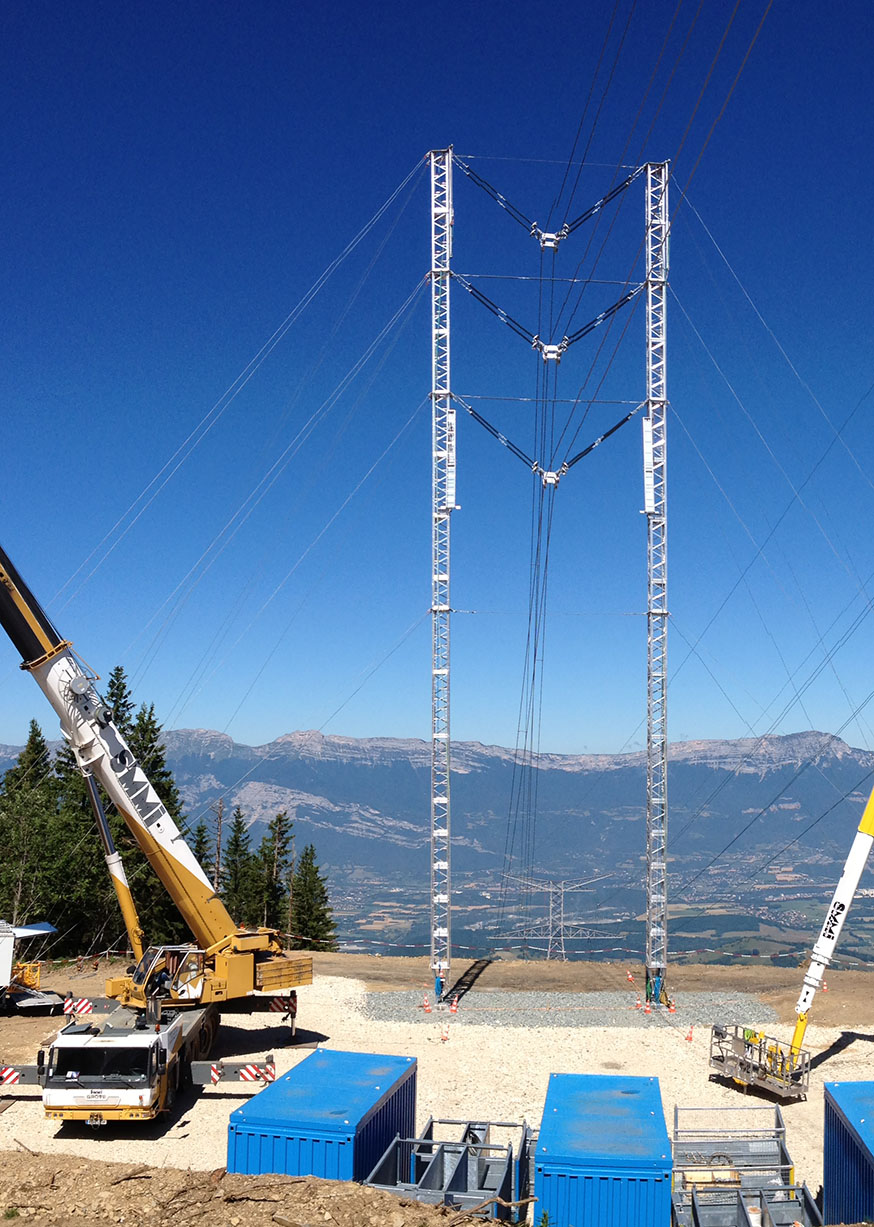

Adiradh Energy offering 800-Series for heavy loads and/or Helicopter assembly which is designed to support the heaviest, most-challenging conductor loads with ease. Designed for lines spanning the French Alps, the 800-Series has 3 times the critical buckling load capacity of our popular 600L-Series, and twice that of the 1070-Series. While all ERS towers can be installed by helicopter, the 800-Series allows for assembly by helicopter, with a unique optional alignment and centering frame designed to assist helicopter pilots in landing tower sections on top of foundations or already installed tower sections.Design and Testing Compliant to IEEE Std. 1070 and IEC-60652.Relative buckling strength 300%,All extruded or plate aluminum construction

Brochure for Emergency restoration system-ERS towers –800-Series ERS Download

600H-Series ERS towers

Adiradh Energy offering 600H-Series compact and tough  uses larger structural elements for greater buckling strength, while still being easy to transport by hand and store. The 600H achieves 90% of the 1070-Series rigidity while still providing for compact storage. All 600H-Series components, including column structure segments, fit neatly into standard 20 foot shipping containers, making for compact storage and security of inventory.Design and Testing Compliant to IEEE Std. 1070 and IEC-60652 Relative buckling strength 130%,All extruded or plate aluminum construction

Brochure for Emergency restoration system-ERS towers-600H-Series ERS Download

600L-Series ERS towers

Adiradh Energy offering 600L-Series compact and light  Physically the lightest ERS system on the market, this ERS towers are ideal when carrying the ERS system components by hand in the field is expected. While light in weight, the 600L-Series still has almost twice the buckling strength of other non-fully IEEE Std. 1070 compliant ERS systems. All 600L-Series components, including column structure segments, fit neatly into standard 20-foot shipping containers, making for compact storage and security of inventory.When lightweight and compact storage are paramount, Lindsey 600L-Series ERS are the solution.Design and Testing Compliant to IEEE Std. 1070 and IEC-60652.Relative buckling strength 100%,All extruded or plate aluminum construction

Brochure for Emergency restoration system-ERS towers –600L-Series ERS Download
