Overview

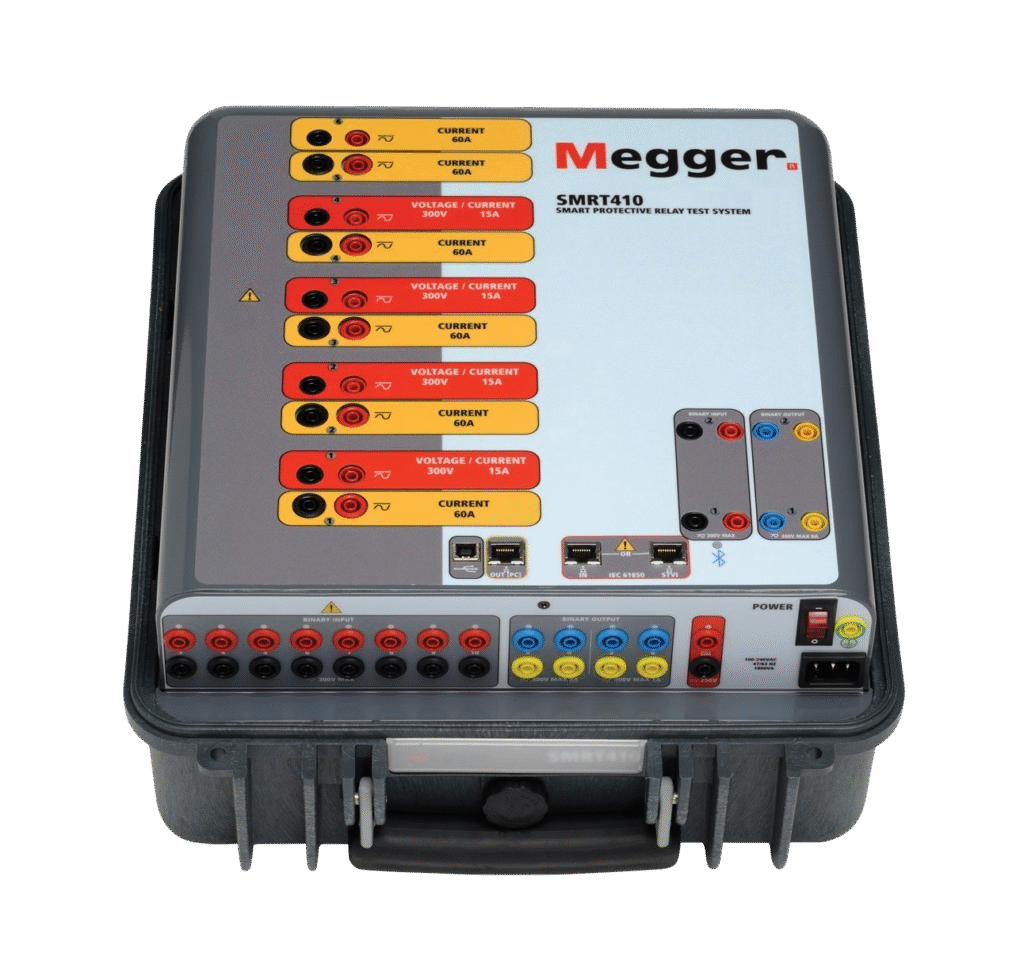

The SMRT410 system delivers controlled current and voltage for protection relay testing across power systems. Moreover, it supports electromechanical, static, and numerical relay types. Furthermore, it includes high-power current output for primary tasks and precise voltage for secondary checks. In addition, it works with test software to create guided routines. Also, its multi-phase output helps check complex schemes. Therefore, users can test directional, differential, distance, and overcurrent devices. Moreover, the system keeps stable output under load. Thus, it supports both field teams and lab engineers.
Datasheet for Multi-phase relay test system SMRT410
User manual for Multi-phase relay test system SMRT410
Product Highlights
The SMRT410 delivers controlled multi-phase current and voltage for full relay testing. Moreover, it supports primary and secondary checks across many relay types. Furthermore, its high-power output helps verify protection in real system conditions. In addition, it works with automated test plans for repeatable results. Also, phase control allows detailed checks of complex schemes. Therefore, it fits commissioning, routine service, and system upgrades. Moreover, it offers stable performance in both lab and field sites. Thus, users gain clear, reliable test data for protection tasks.
Technology & Benefits
The SMRT410 uses advanced amplifiers for stable current and voltage even under heavy load. Moreover, harmonic and transient functions help check relay response under real system events. Furthermore, automated steps give consistent test flow with reduced manual action. In addition, built-in functions guide checks for timing, pickup, and logic tests. Also, precise phase control supports complex relay schemes. Consequently, users reduce test time with clear output. Moreover, the system supports multi-section testing across devices. Thus, it improves reliability in protection validation.
Key Features
-
Multi-phase current and voltage outputs
-
High-power current source for primary injection
-
Precision voltage source for secondary relay testing
-
Harmonic, transient, and waveform playback tools
-
Automated routines with compatible software
-
Support for electromechanical, static, and numerical relays
-
Phase angle, frequency, and vector control
-
Portable design for field and lab use
Applications
-
Testing overcurrent, distance, directional, and differential relays
-
Primary injection for CT and breaker checks
-
Secondary injection for relay and control circuits
-
Protection scheme checks in substations and plants
-
System commissioning and maintenance
-
Automation and control device validation
Advantages
The SMRT410 gives stable output, wide relay support, detailed phase tools, and guided test routines. Moreover, it helps teams handle complex tasks with clear steps. Consequently, users gain accurate, repeatable, and well-documented results.
