Primary Current Injection Test systems and Circuit breaker testers

Primary current injection test systems  is utilised in high current/high voltage scenarios found at large electrical installations such as substations. A large current (between 100A and 20,000A depending on system specifications and test requirements) is injected directly on the primary side of the electrical system such as a circuit breaker. The objective of the test is to identify how the system operates under various levels of current load. Adiradh Energy offers  Primary current injection systems Models Oden AT,INGVAR,CSU600/600AT,SPI225, Circuit breaker testers DDA-16, DDA-30, DDA-60,DDA-1600,DDA-3000, DDA-6000

Primary current injection test systems

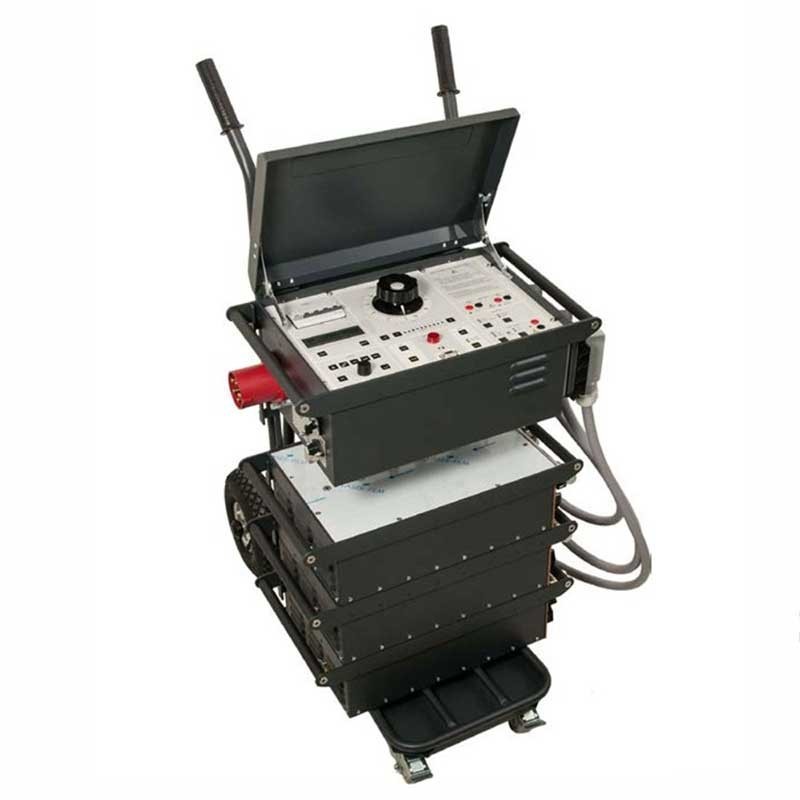

 ODEN AT-Primary current injection test system

Oden AT is designed for primary injection testing of protective relay equipment and circuit breakers. It is also used to test the turns ratio of current transformers and for other applications that require high variable currents. The system consists of a control unit together with one, two or three current units. There are three versions of the current unit: S, X and H. The S and X current units are identical except that the X unit has an additional 30/60 V output. The H unit is rated for even higher current.ODEN AT can be quickly assembled and connected. The control unit has many advanced features – a powerful measurement section for example, that can display turns ratio as well as time, voltage and current. A second measurement channel can be used to measure an additional current or voltage. Current transformer turns ratio, impedance, resistance, power, power factor (cos φ) and phase angle are calculated and shown in the display. Current and voltage can be presented as percentages of nominal value.

Oden AT

Primary current injection test system -Oden AT

Overview of Oden AT

  • Most Advanced Primary Current Injection Test System to simplify all types of switchgear and CT commissioning, ground grid, circuit breaker testing and more „
  • Modular design to permit optimal user configuration of output current  unit size „
  • Compact transport cart facilitates portability into switchgear rooms with limited space „
  • Unique I/30 function allows the current to be pre-set using low current to prevent test sample heating, thus eliminating corruption of test result

Oden AT Applications

  • Primary current injection testing and breaker testing
  • Testing current transformers
  • Polarity testing
  • Heat runs
  • Automatic reclosers and sectionalizers
  • Testing integrity of ground grids and safety-ground devices

Adiradh Energy offers primary injection test system Oden AT in  India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Primary current injection kit  Oden AT Download

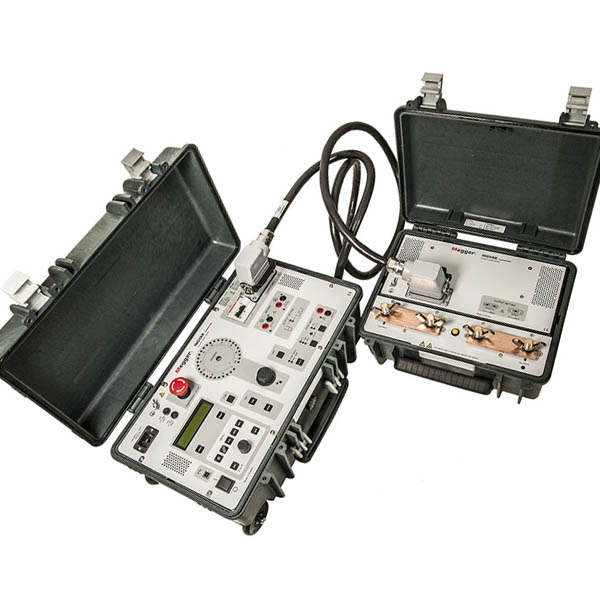

INGVAR-Primary current injection  test system

INGVAR is designed for primary injection testing of protective relay equipment and circuit breakers. It is also used to test the turns ratio of current transformers and for other applications that require high variable currents. The system consists of a control unit and a current unit. The two parts are portable, and INGVAR can be quickly assembled and connected. The control unit has many advanced features – a powerful measurement section for example, that can display turns ratio as well as time, voltage and current. A second measurement channel can be used to test an additional current or voltage. Current transformer turns ratio, impedance, power, power factor (cos φ) and phase angle are calculated and shown in the display. Current and voltage can be presented as percentages of nominal value.

Primary Current Injection Test System

Primary Current Injection Test System-INGVAR

Overview of  INGVAR

  • Most Advanced Primary Current Injection Test System to simplify all types of switchgear and CT commissioning, ground grid, circuit breaker testing and more
  • Up to 5000 A output current
  • Two units, each of about 20 kg (44 lbs), simplifies transportation
  • Unique I/30 function allows the current to be pre-set using low current to prevent test sample heating, thus eliminating corruption of test result

INGVAR Applications

  • Primary current injection testing and breaker testing
  • Testing current transformers
  • Polarity testing
  • Heat runs
  • Automatic reclosers and sectionalizers
  • Testing integrity of ground grids and safety-ground devices

Adiradh Energy offers primary injection test system INGVAR in  India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Primary current injection kit  INGVAR   Download

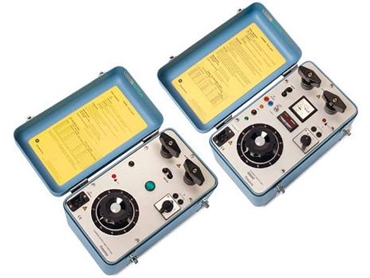

Current supply units-CSU600/600AT

Current supply units have two main fields of application. The first is to conduct primary tests on protective relays. A primary test shows whether all parts of the protection system are function-ing together properly within the specified time limits under operat-ing conditions.The second field of application involves conducting current tests on low-voltage circuit breakers and overcurrent devices. CSU600AT  provides a more comprehensive solution. It has a built-in timer and an analog ammeter that provide rough current settings quickly and easily. As a result, connection time has been reduced to the bare minimum.The CSU600A and CSU600AT current supply units have an excellent weight/performance ratio

Current supply units

Current supply units CSU600A-CSU600AT

Overview of CSU600/600AT

  • Compact and rug
  • Quick and easy to use
  • Broad application range
  • Excellent weight/performance ratio

Adiradh Energy offers Current supply units CSU600-CSU600AT in  India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities

Brochure for Current supply units-CSU600-CSU600AT Download

Smart Primary Injection Test System SPI225

 SPI225 is a high current primary injection test system for all forms of high current testing required in a substation, including testing overcurrent relays, circuit breakers, motor overloads and current transformers.SPI system is the FIRST high current test systems to permit a user to type in a predetermined current and the SPI system will generate and regulate the requested high current without preheating the test sample by pulsing the output current at high currents. The SPI system also has the unique ability to turn on at the current zero crossing every time for any load by automatically adjust the output firing angle. This eliminates DC offset for every circuit breaker type and the need for the user to determine and adjust the firing angle for different loads and circuit breakers.

Smart primary injection test system

Smart primary injection test system-SPI225

Overview of SPI225

  • Up to 2000A output
  • Smallest primary injection test system in its class
  • Output current regulation
  • Designed for switchgear commissioning, circuit breaker, CT commissioning, ground grid and relay testing
  • Software includes thousands of circuit breaker TCC curves1

 Brochure for Smart Primary Injection Test System SPI225   Download

Circuit breaker testers



Multi-Amp Circuit Breaker Tester Retrofit DDA16, DDA30 and DDA60

DDA-16, DDA-30, DDA-60 use the latest in DSP technology to control the circuit breaker test sets and also measure the reactions of the breaker under test. The retrofit capabilities allow a user of Multi-Amp circuit breaker tests sets the capability of upgrading existing systems without the expense of purchasing a new system. The DSP technology provides complete digital control of the SCRs and digitally samples the output current for high-accuracy measurements.

Digital Data Acquisition Instrumentation and Control System

Digital Data Acquisition Instrumentation and Control System DDA-16, DDA-30 and DDA-60

Overview of DDA16, DDA30 and DDA60

  • Drop-in retrofit capability to the Multi-Amp Model CB-9116, Model DB-8130 and Model CB-8160 circuit breaker test sets
  • Digital Signal Processing (DSP) technology
  • Variable pulse time and firing-angle output-current control
  • Complies with NEMA AB-4 Test Guidelines

 Brochure for Multi-Amp Circuit Breaker Tester Retrofit DDA16, DDA30 and DDA60    Download

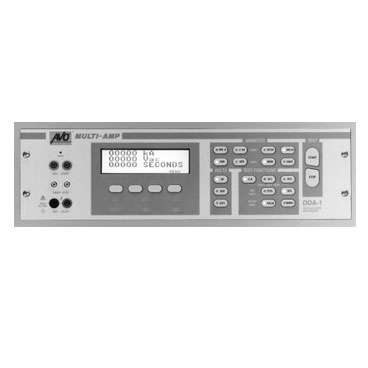

Circuit Breaker Tester DDA1600

 DDA-1600 is ideal for testing low-voltage breakers rated to 1600-ampere frame size. Incorporating the new Model DDA-1 Digital Data Acquisition Instrumentation and Control System, it provides increased control of output current and high accuracy metering of the breaker under test. A full line of other DDA test sets is available to meet all of your high-current, primary injection testing needs through 6000-ampere frame size.

Brochure for Circuit breaker test sets- DDA1600 Download

Universal circuit breaker test sets- DDA-3000 and DDA-6000

DDA-3000 and DDA-6000 are designed specifically to test low-voltage power and molded-case circuit breakers equipped with thermal, magnetic or solid-state trip devices. The unique transformer and circuit design results in a very high-capacity test set in a very compact size. Advanced digital control and instrumentation provides exact testing capacity. The test sets can also be used for other high current applications, such as verifying the ratio of current transformers and performing heat runs or primary injection testing of high-voltage breakers and their associated protective relays

DDA-3000 and DDA-6000

UNIVERSAL CIRCUIT BREAKER TEST SETS DDA-3000 and DDA-6000

Overview of Universal circuit breaker test sets

  • Model DDA-1 Digital Data Acquisition Instrumentation and Control System
  • High-current output: 60,000 A for Model DDA-6000; 35,000 A for Model DDA-3000
  • Digital signal processing (DSP) technology
  • Variable pulse time and firing angle output current control
  • Compliant with NEMA AB-4 test guidelines

Brochure for Circuit breaker test sets- DDA-3000 and DDA-6000 Download

Adiradh Energy offers Circuit breaker testers DDA-16, DDA-30, DDA-60,DDA-1600,DDA-3000, DDA-6000 in India; Hyderabad; Visakhapatnam; Vijayawada; Chennai; Puducherry; Trichy; Coimbatore; Hosur; Bangalore; Hubli; Mysore; Cochin; Kolkata; Pune; Goa; Mumbai; Thane; Kanpur; Jaipur; Nagpur; Delhi; Noida; Gurugam; Bhopal; Vadodara; Ahmedabad; Chandigarh; Chandigarh; Tata Nagar; Raipur; Rudrapur;; Durgapur; Kharagpur; Raigarh; Bhilai;Angul; Haldia; Jabalpur; Indore; Jamshedpur; Rajahmundry; Bokaro Steel City; Salem; Kochi; Rourkela; Ahmedabad ;Jamnagar; Bharuch; Sri City; Nashik; Haridwar; Mathura; Aurangabad; Bhubaneswar and other cities
